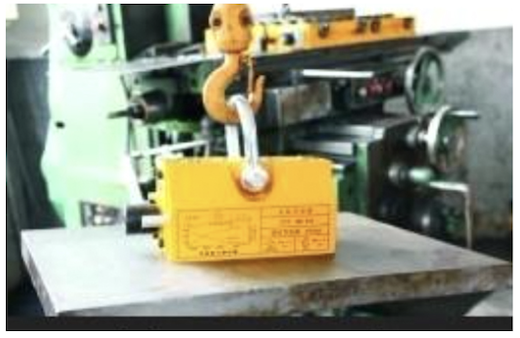

·Widely used for hanging iron objects, such as mechanical processiong, machinery, mould industry.
·Compact structure, light weight, easy to operate.
·Without electricity, workbale in outside.
·3 times safety factor, maximum pulled off force 3-3.5 times, insurance to prevent wrong operation.

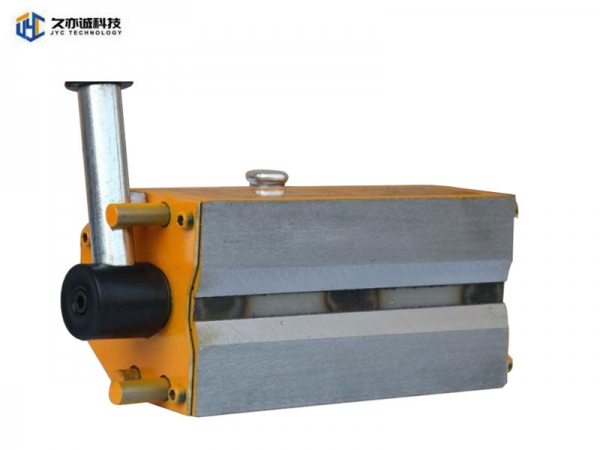

·"V" groove design, which can hang flat or circular owrk pieces.

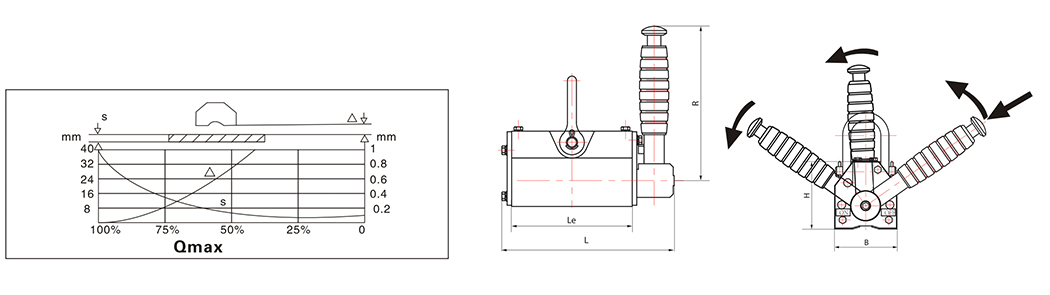

| Model | Rated lifting capacity (Kgf) | Cylindrical lifting force (Kgf) | Dimension (mm) | Max pull-off force (Kgf) | Net Weight(kg) | |||
| L(length) | B(width) | H(height) | RHandle length) | |||||
| PML-100 | 100 | 30 | 92 | 65 | 69 | 155 | 350 | 2.5 |
| PML-200 | 300 | 100 | 130 | 88 | 69 | 155 | 900 | 5.5 |
| PML-400 | 400 | 120 | 165 | 95 | 95 | 200 | 1200 | 10 |
| PML-600 | 600 | 200 | 210 | 115 | 116 | 230 | 1800 | 19 |

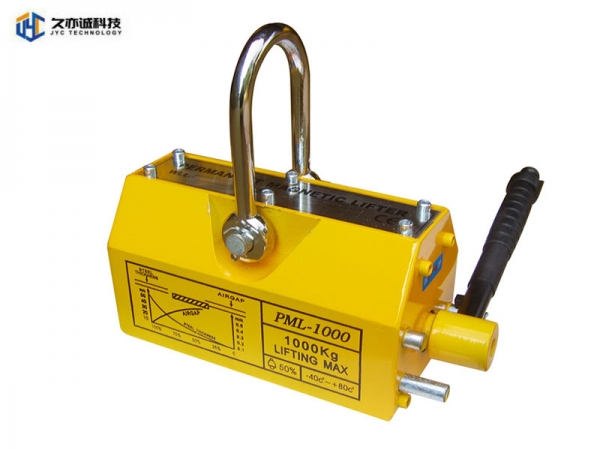

| PML-1000 | 1000 | 300 | 260 | 135 | 140 | 255 | 3000 | 35 |
| PML-1500 | 1500 | 500 | 340 | 135 | 140 | 255 | 4500 | 45 |
| PML-2000 | 2000 | 600 | 356 | 160 | 166 | 320 | 6000 | 65 |
| PML-3000 | 3000 | 1000 | 444 | 160 | 166 | 380 | 9000 | 85 |
| PML-4000 | 4000 | 1300 | 520 | 175 | 175 | 550 | 12000 | 150 |

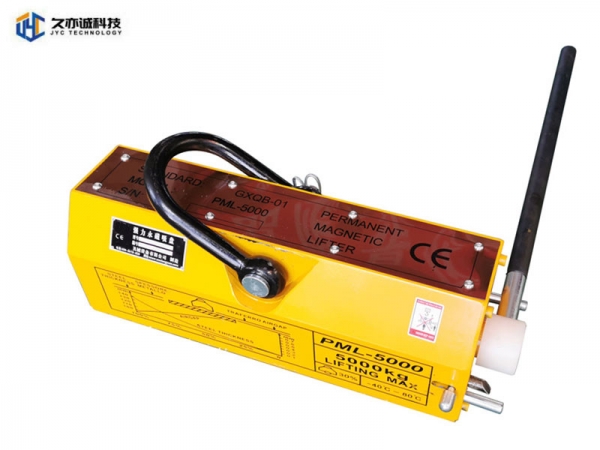

| PML-5000 | 5000 | 1500 | 620 | 220 | 220 | 600 | 15000 | 210 |
| PML-6000 | 6000 | 2000 | 650 | 270 | 265 | 700 | 18000 | 300 |
| PML-10000 | 10000 | 3000 | 800 | 235 | 290 | 800 | 30000 | 395 |
| Note: Other specifications can be customized ,please call for further information. | ||||||||
