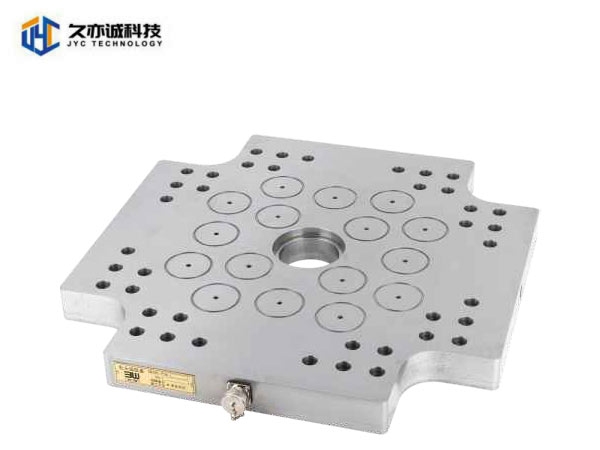

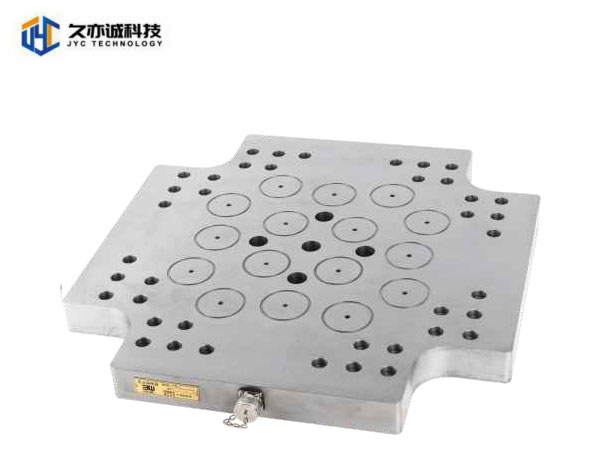

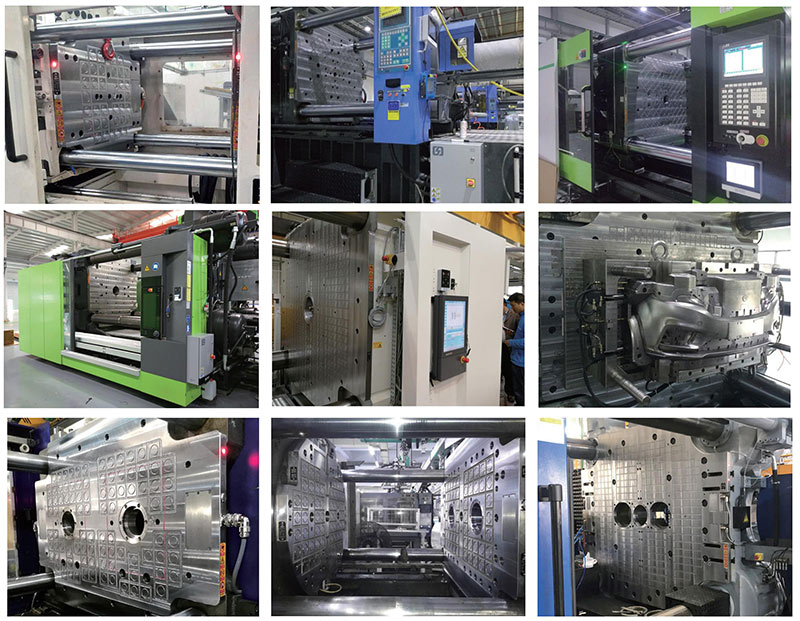

Widely used in machining center, mold industry, injection industry for quick die clamping

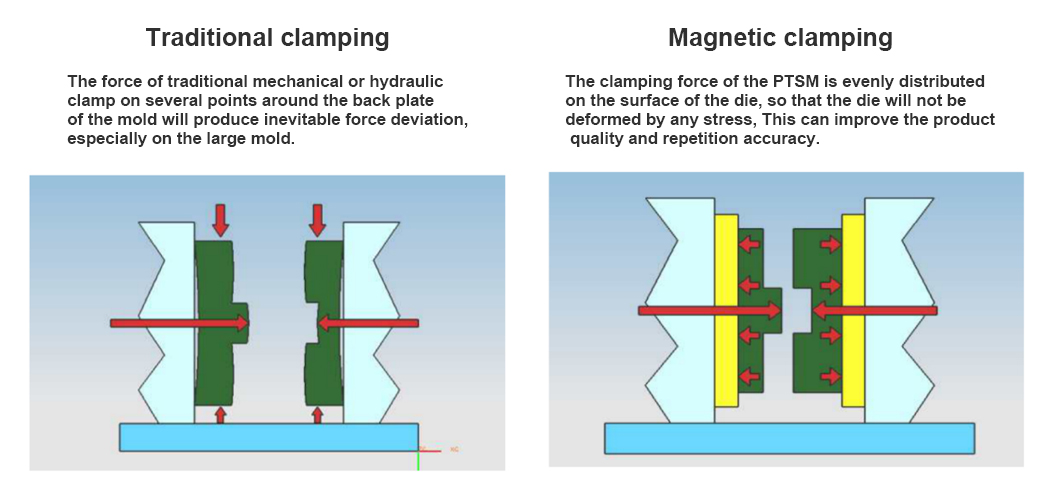

Features
·Suitable for mold production of many varieties and small batches
·Electro permanent magnet, powerful magnetism

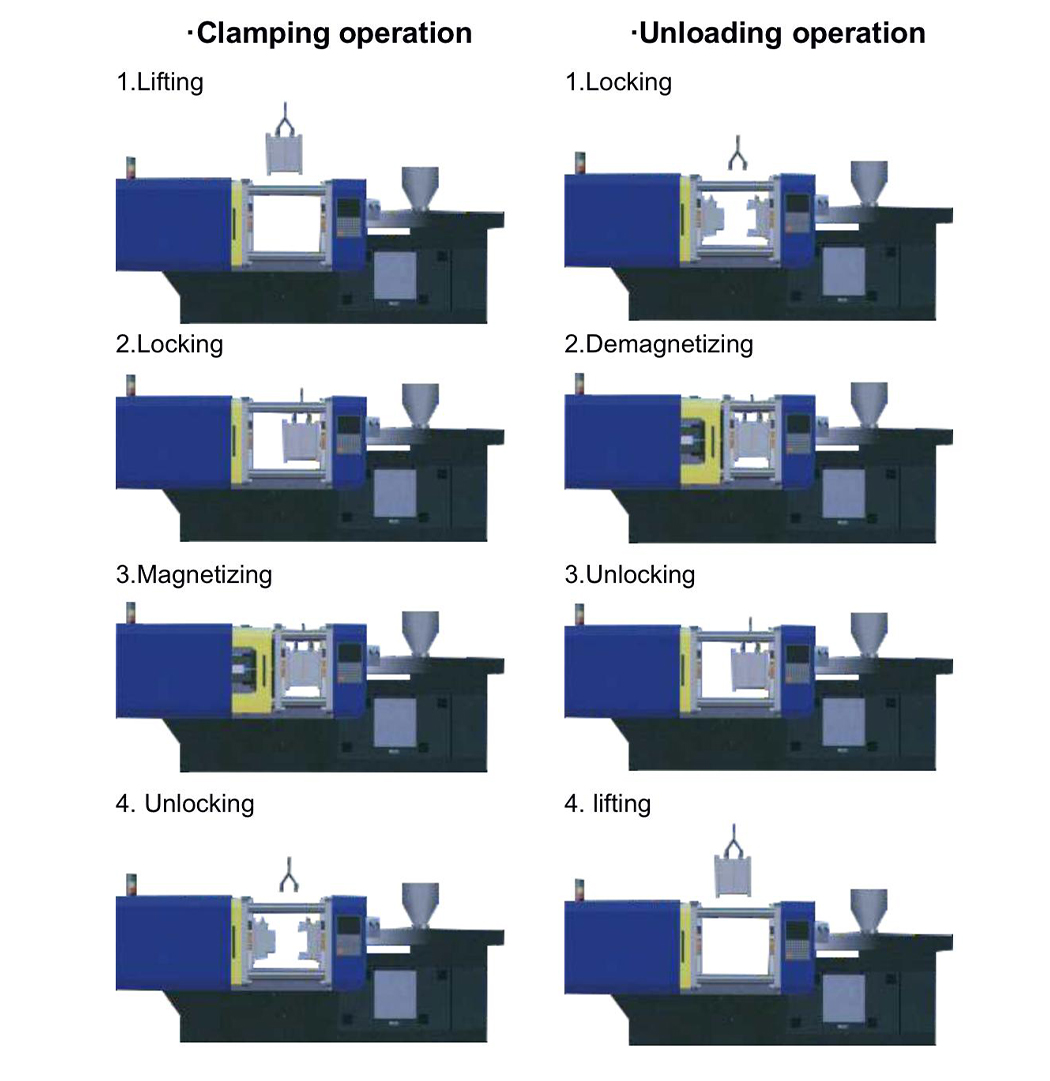

·Reduced mold change time by at 70%, increase productivity
·Reduce labor cost and increase safety
·Fully sealed multi-layer waterproof design, to ensure the service life
| Model | Dimensions (MM) | Polar Distance (MM) | Polar number | Net Weight (KG) | |||
| Length | Breadth | Height | 70*70 | 50*50 | |||
| PTM-Φ250 | 250 | 250 | 55 | 70*70/50*50 | 4 | 9 | 28 |
| PTM-3040 | 320 | 425 | 12 | 20 | 50 | ||
| PTM-3060 | 320 | 600 | 18 | 32 | 78 | ||
| PTM-3080 | 320 | 750 | 24 | 48 | 87 | ||
| PTM-4040 | 400 | 400 | 16 | 25 | 70 | ||
| PTM-4050 | 400 | 500 | 20 | 35 | 86 | ||
| PTM-4060 | 400 | 600 | 24 | 40 | 105 | ||
| PTM-4080 | 400 | 800 | 32 | 60 | 138 | ||
| PTM-5050 | 500 | 500 | 25 | 49 | 108 | ||
| PTM-5080 | 500 | 800 | 40 | 84 | 135 | ||
| PTM-50100 | 500 | 1000 | 50 | 105 | 150 | ||
| PTM-6060 | 600 | 600 | 36 | 72 | 155 | ||
| PTM-60120 | 600 | 1200 | 72 | 144 | 310 | ||
|

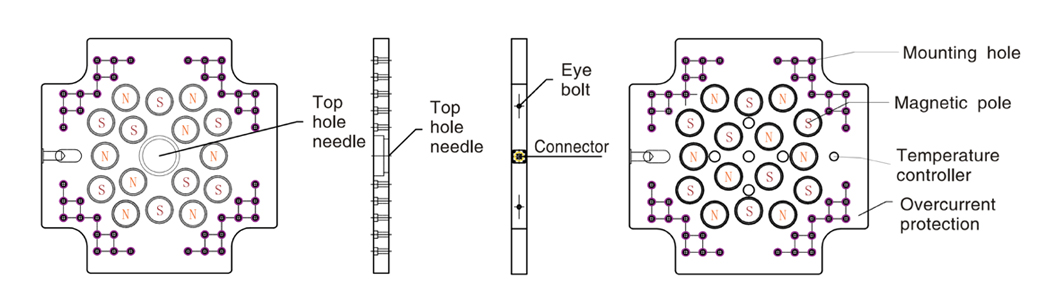

Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (through hole/pressing block). |
|||||||
| Iterm | Φ70 round pole | 75x75 square pole | Φ50 round pole | 50x50 square pole | ||
| Suction of single pole | 500kg | 600kg | 350kg | 300kg | ||
| Dimension of single pole | Φ70mm | 75x75mm | Φ50mm | 50x50mm | ||
| Thickness of each magnet | ≧42 | |||||
| Penetration depth of magnetic force | 25mm | 10mm | ||||
| Max working temperature | 120°C | |||||
| Induction distance | 0.2mm | |||||
| Power input | 220/380VAC, 50/60Hz | |||||
| Power | 15KVA(220V)/25KVA(380V) | |||||
| Fixed hole and positioning hole | cutomized | |||||
