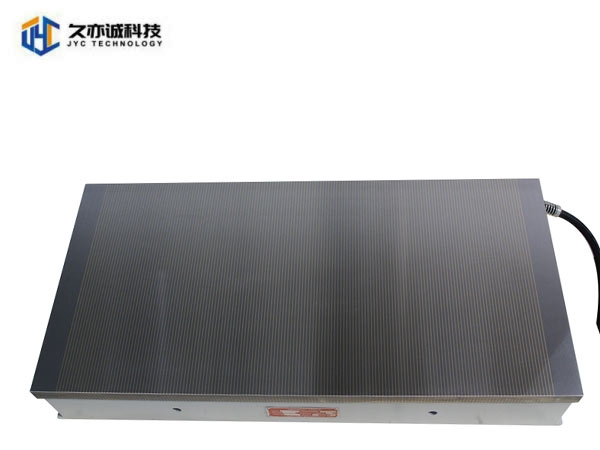

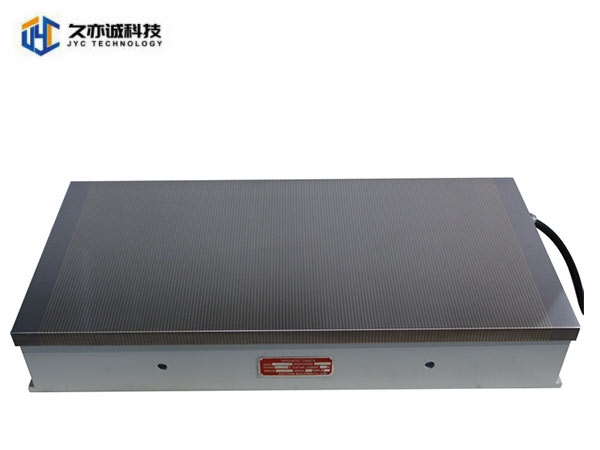

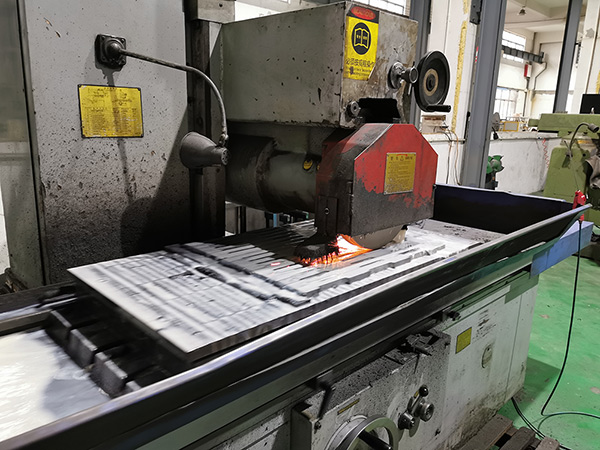

·Suitable for all kinds of surface grinder，especially for small work pieces
·High rigidity, high precision, small thermal deformation
·No manpower required, easy to use.
·Suction up to 100 N/cm2. higher suction can be customized
·Pole pitch：5mm, customized
Electronic controller（optional）
If you don't have the control system to control the working state of this electromagnetic chuck, our controller is also a good choice.
With AC 0-380V, it's suitable for all kinds of situation.
If your workpices is bigger, you may need bigger pole pitch. Check here for X11 electromagnetic chuck for grinding.
Magnetic chuck VS traditional clamping

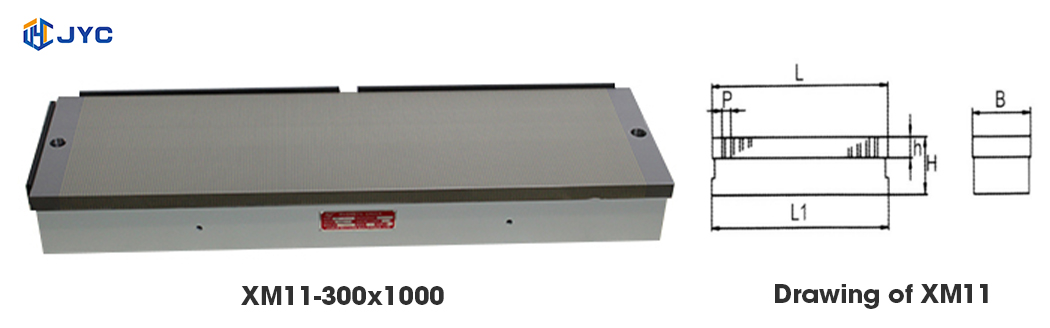

| Model | Dimensions (MM) | Polar Distance (P) | Voltage (V) | Current (A) | Power (W) | Net Weight (KG) | Overall size (CM) | ||
| Length | Breadth | Height | |||||||
| XM11 150*300 | 300 | 150 | 110 | 5 | 110 | 0.68 | 75 | 23 | 50*25*20 |
| XM11 150*350 | 350 | 150 | 110 | 5 | 110 | 0.8 | 88 | 29 | 55*25*20 |
| XM11 150*400 | 400 | 150 | 110 | 5 | 110 | 0.9 | 100 | 36 | 60*25*20 |
| XM11 150*450 | 450 | 150 | 110 | 5 | 110 | 0.94 | 103 | 48 | 65*25*20 |
| XM11 200*400 | 400 | 200 | 110 | 5 | 110 | 0.95 | 123 | 62 | 60*30*20 |
| XM11 200*450 | 450 | 200 | 110 | 5 | 110 | 1.03 | 113 | 66 | 65*30*20 |
| XM11 200*500 | 500 | 200 | 110 | 5 | 110 | 1.23 | 135 | 72 | 70*30*20 |
| XM11 200*560 | 560 | 200 | 110 | 5 | 110 | 1 | 110 | 80 | 76*30*20 |
| XM11 200*600 | 600 | 200 | 110 | 5 | 110 | 1 | 110 | 86 | 76*30*20 |
| XM11 200*630 | 630 | 200 | 110 | 5 | 110 | 1.1 | 121 | 88 | 83*30*20 |
| XM11 250*500 | 500 | 250 | 110 | 5 | 110 | 1.2 | 132 | 92 | 70*35*20 |
| XM11 250*600 | 600 | 250 | 110 | 5 | 110 | 1.7 | 185 | 118 | 80*35*20 |
| XM11 300*600 | 600 | 300 | 110 | 5 | 110 | 1.88 | 207 | 144 | 80*40*20 |
| XM11 300*680 | 680 | 300 | 110 | 5 | 110 | 1.5 | 160 | 150 | 88*40*20 |
| XM11 300*800 | 800 | 300 | 115 | 5 | 110 | 2 | 220 | 172 | 100*40*21 |
| XM11 300*1000 | 1000 | 300 | 115 | 5 | 110 | 2.2 | 342 | 223 | 120*40*21 |
| XM11 320*800 | 800 | 320 | 115 | 5 | 110 | 2.1 | 231 | 185 | 88*42*20 |
| XM11 320*1000 | 1000 | 320 | 115 | 5 | 110 | 2.35 | 258 | 238 | 120*42*21 |
| XM11 400*800 | 800 | 400 | 115 | 5 | 110 | 2.3 | 253 | 235 | 88*50*21 |
| XM11 400*1000 | 1000 | 400 | 115 | 5 | 110 | 2.88 | 316 | 290 | 120*50*21 |
|
Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (through hole/pressing block), two types(A/B). |
|||||||||
