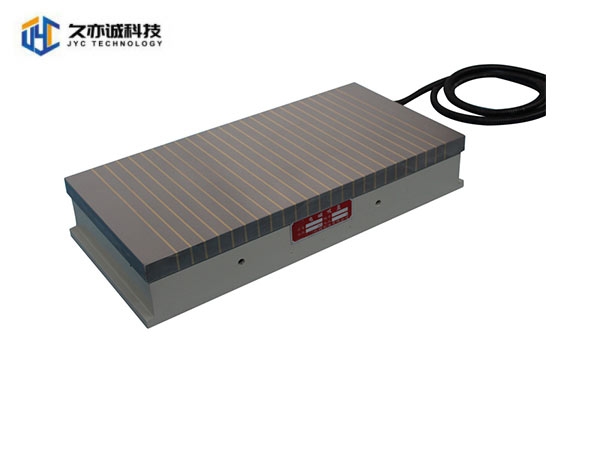

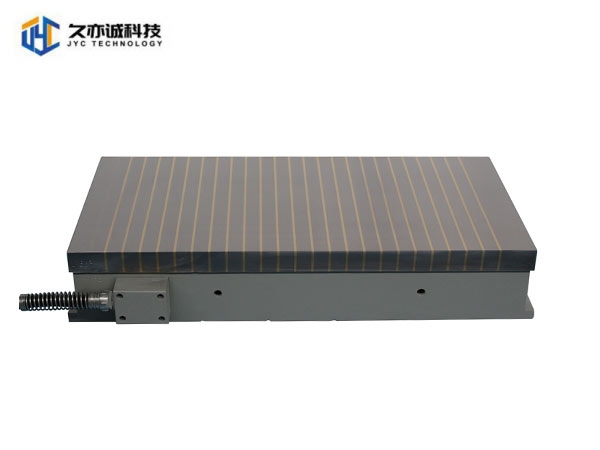

X11 electromagnetic chuck for grinding

ASK for quote

Detail

Features

·Suitable for all kinds of surface grinder
·High rigidity, high precision, small thermal deformation
·No manpower required, easy to use.
·Suction up to 100 N/cm2. enough for grinding.
·Pole pitch：15mm, 20mm, customized.

Electronic controller（optional）

If you don't have the control system to control the working state of this electromagnetic chuck, our controller is also a good choice. With AC 0-380V, suitable for all kinds of situation.

Looking for dense pole pitch?

If your workpices is smaller, you may need more dense pole pitch. Check here for XM11 electromagnetic chuck for grinding.

Magnetic chuck VS traditional clamping

Compared with traditional clamping, there are a lot of advantages for magnetic chuck,
Read more

Different magnet types

There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electro permanent magnetic chuck, each one has their advantages.
Read more

Specifications
Applications
Accessories

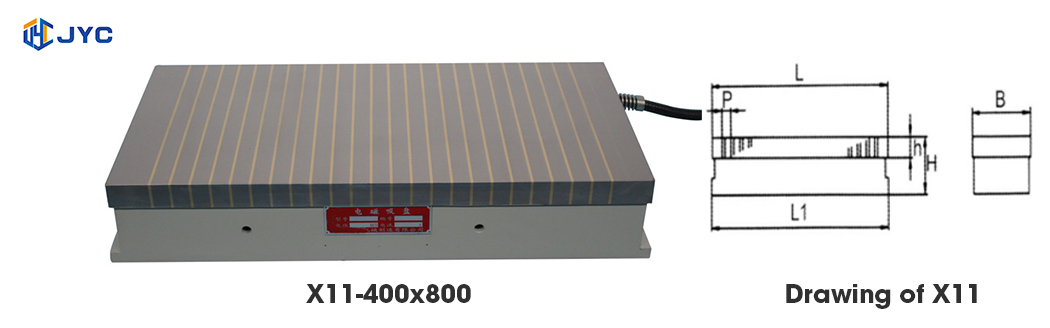

Model	Dimensions (MM)			Polar Distance (P)	Voltage (V)	Current (A)	Power (W)	Net Weight (KG)	Overall size (CM)
Model	Length	Breadth	Height	Polar Distance (P)	Voltage (V)	Current (A)	Power (W)	Net Weight (KG)	Overall size (CM)
X11 150*400	400	150	80	15	110	0.45	50	31	582518
X11 200*400	400	200	80	15	110	0.8	88	40	582918
X11 200*560	560	200	110	22	110	0.93	103	83	762920
X11 200*630	630	200	110	22	110	1.14	125	90	852920
X11 200*800	800	200	110	22	110	1.2	132	107	1052920
X11 200*1000	1000	200	110	22	110	1.25	138	134	1252920
X11 250*600	600	250	110	22	110	1.2	132	98	803420
X11 300*600	600	300	110	22	110	1.4	154	124	803820
X11 300*680	680	300	110	22	110	1.45	160	136	903820
X11 300*800	800	300	110	22	110	1.84	185	156	1004020
X11 300*1000	1000	300	110	22	110	1.94	213	200	1184020
X11 300*1500	1500	300	110	22	110	2.1	231	300	1684020
X11 300*1600	1600	300	115	22	110	2.2	233	322	1784022
X11 320*800	800	320	110	22	110	1.84	208	176	984220
X11 320*1000	1000	320	110	22	110	2.26	249	220	1184220
X11 320*1250	1250	320	110	22	110	1.96	216	268	1454220
X11 320*1600	1600	320	115	22	110	2.2	233	343	1784222
X11 400*630	630	400	110	22	110	1.2	136	169	835020
X11 400*800	800	400	110	22	110	1.9	209	200	985020
X11 400*1000	1000	400	110	22	110	2	220	268	1185020
X11 400*1200	1200	400	110	22	110	2.1	231	321	1385020
X11 400*1600	1600	400	115	22	110	3.4	370	428	1785022
X11 400*1800	1800	400	115	22	110	6	660	480	1985022
X11 500*800	800	400	110	22	110	2.7	297	270	986020
X11 500*1000	1000	500	115	22	110	3.4	373	360	1186022
X11 500*1200	1200	500	115	22	110	3.3	330	370	1386022
X11 500*1600	1600	500	115	22	110	4.5	498	570	1786022
X11 500*2000	800	600	115	22	110	5.32	585	705	2286022
X11 600*1000	1000	600	115	22	110	2.1	231	360	1187022
X11 600*1200	1200	600	115	22	110	4.5	495	432	1387022
X11 600*1600	1600	600	115	22	110	4.5	495	678	1787022
X11 600*2000	2000	600	115	22	110	5.4	594	847	2187022
X11 630*1000	1000	630	115	22	110	4	440	400	1187522
X11 630*1250	1250	630	115	22	110	4.8	528	450	1457522
X11 630*1600	1600	630	115	22	110	5.14	565	730	1787522
X11 630*2000	2000	630	115	22	110	7	770	950	2187522
X11 700*1000	1000	700	115	22	110	2	220	550	1008022
X11 800*1000	1000	800	115	22	110	2.48	273	550	1189022
X11 800*1600	1600	800	115	22	110	6.8	550	850	1689022
X11 1000*1000	1000	1000	115	22	110	6.8	429	78	11811022
X11 1000*1800	1800	1000	115	22	110	10	1100	1200	20012022
Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (through hole/pressing block).
