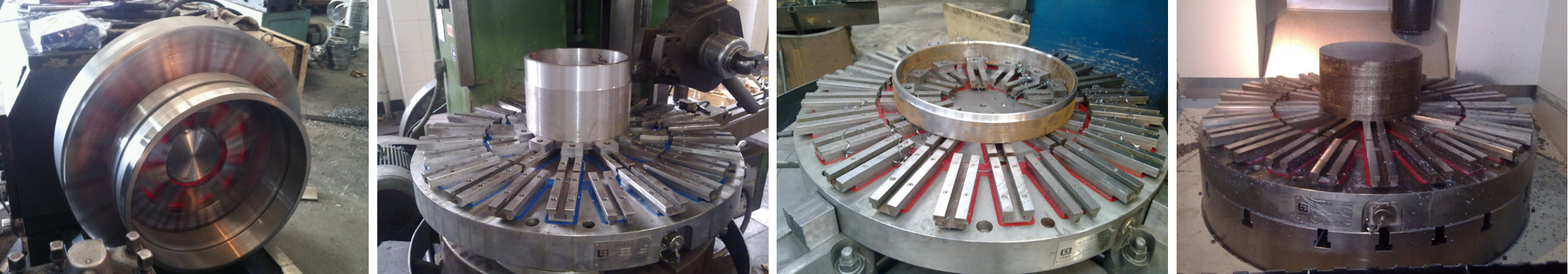

·Suitable for all kind of lathe machine
·Suction up to 180 N/cm2.
·No power need when it work, easy to operate, small heating deformation,no affection at the processing accuracy

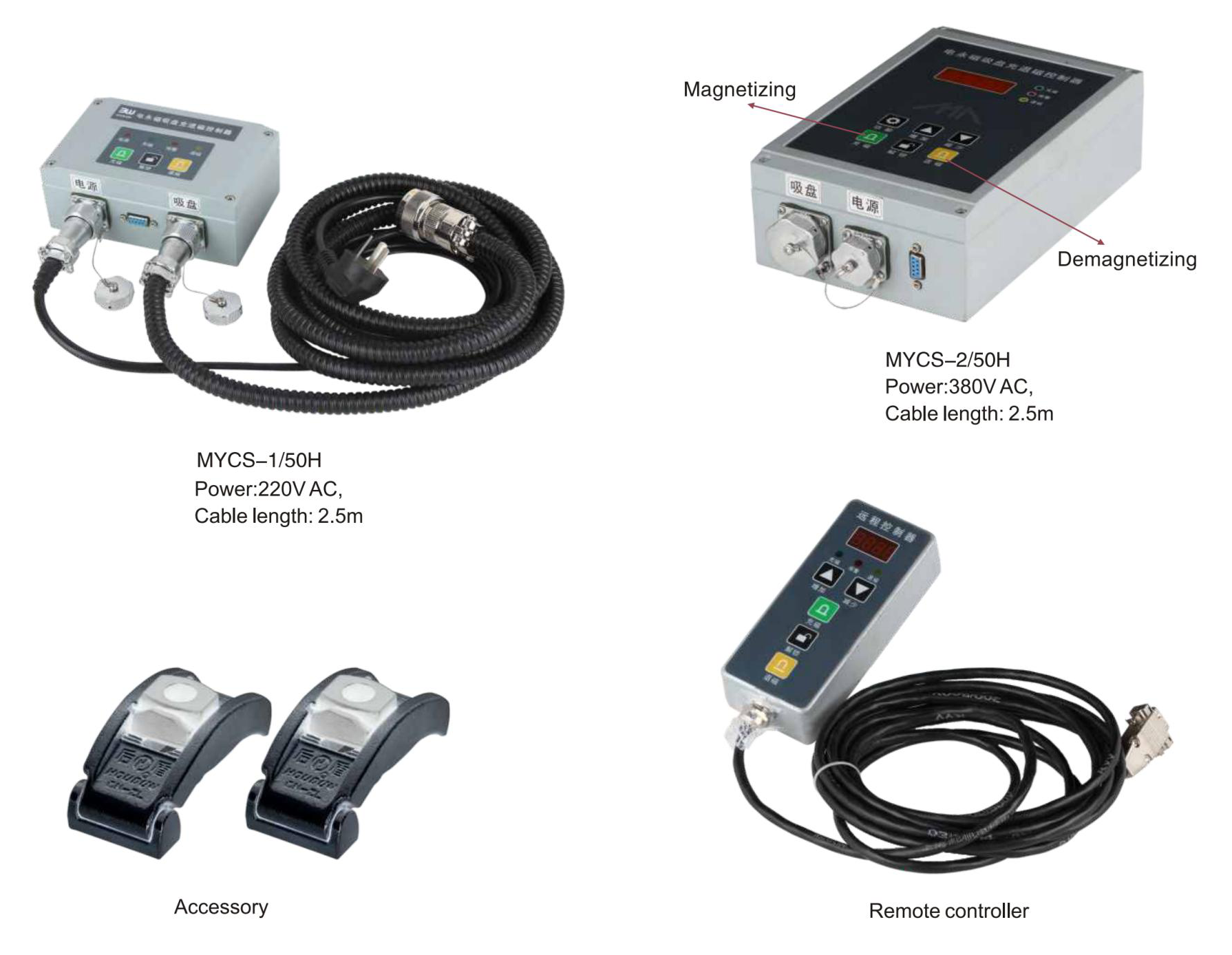

Electronic controller（optional）
If you don't have the control system to control the working state of this chuck, please ask our sales for more information. Multiple control and remote control are all available.With AC 0-380V, suitable for all kinds of situation.
Two methods of power connection
Customers can choose whether to continuously connect the controller through a central conductive slip ring, eliminating the trouble of quickly plugging and unplugging the connector.
Magnetic chuck VS traditional clamping Compared with traditional clamping, there are a lot of advantages for magnetic chuck
|

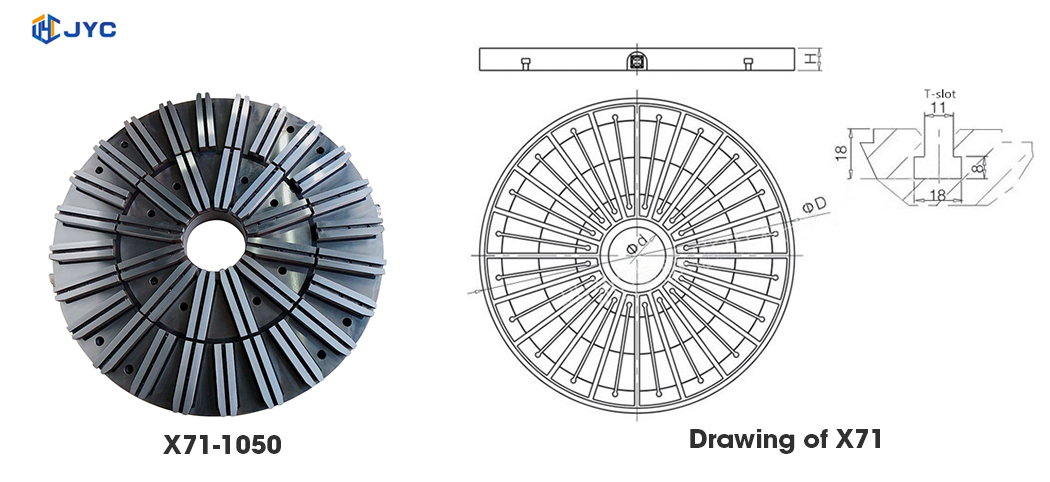

Model |
Dimensions(MM) | Polar Number | Channel Number | Voltage (V) |
Max RPM [1/min] |
Net WT (KG) | Overall size (CM) | ||
| φD | φd | H | |||||||
| X71-400 | 400 | 60 | 100 | 12 | 1 | 220/480 | 1000 | 98 | 50*50*20 |
| X71-500 | 500 | 60 | 100 | 12 | 1 | 220/480 | 800 | 150 | 60*60*20 |
| X71-600 | 600 | 80 | 100 | 12 | 1 | 220/480 | 650 | 220 | 70*70*20 |
| X71-700 | 700 | 80 | 110 | 12/16 | 2 | 220/480 | 600 | 290 | 80*80*22 |
| X71-800 | 800 | 120 | 110 | 12/16 | 2 | 220/480 | 500 | 390 | 90*90*22 |
| X71-1000 | 1000 | 200 | 120 | 16/24 | 2 | 220/480 | 400 | 660 | 110*110*22 |
| X71-1200 | 1200 | 250 | 120 | 16/24 | 2 | 220/480 | 320 | 950 | 130*130*22 |
| X71-1400 | 1400 | 300 | 130 | 18/24 | 4 | 220/480 | 260 | 1400 | 150*150*25 |
| X71-1600 | 1600 | 400 | 130 | 24/32 | 4 | 220/480 | 240 | 1850 | 170*170*25 |
| X71-1800 | 1800 | 500 | 130 | 24/32 | 4 | 220/480 | 160 | 2300 | 190*190*25 |
| X71-2000 | 2000 | 600 | 135 | 24/36 | 6 | 220/480 | 128 | 2900 | 210*210*26 |
| X71-2500 | 2500 | 800 | 135 | 36/48 | 8 | 220/480 | 100 | 4500 | 268*268*26 |
| X71-3000 | 3000 | 800 | 140 | 36/48 | 8 | 220/480 | 80 | 6800 | 318*318*26 |
| X71-3500 | 3500 | 1000 | 140 | 48/60 | 10 | 220/480 | 60 | 9500 | 368*368*26 |
|
Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (Quick plug/electric conductive slip ring). |
|||||||||
