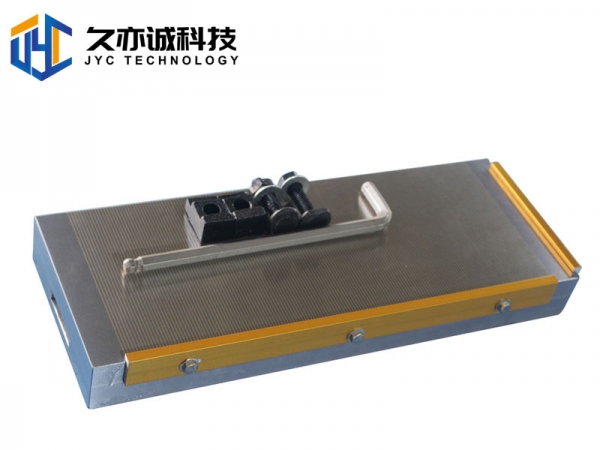

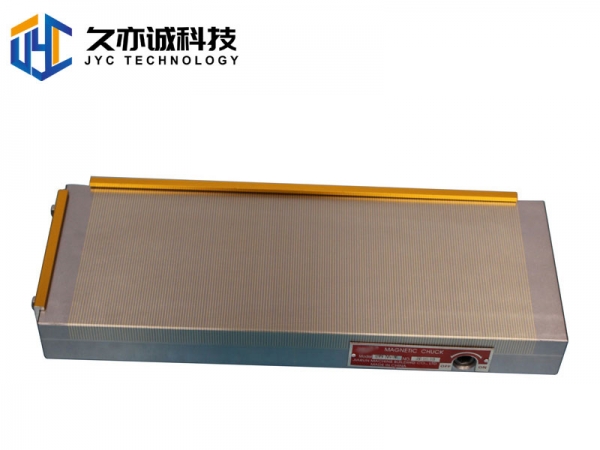

XM91 Dense pole permanent magnetic chuck

ASK for quote

Detail

Features

·Suitable for flat grinding machine, spark machine, cutting machine, etc.
·Magnetic line is dense, which makes the magnetism uniform, especially suitable for holding thin and small work piece
·Suction up to 100 N/cm2.
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy
·Pole pitch：0.5mm+1.5mm or 1mm+3mm, customized
Magnetic chuck VS traditional clamping

Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more

Different magnet types

There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
Read more

Specifications
Applications
Accessories

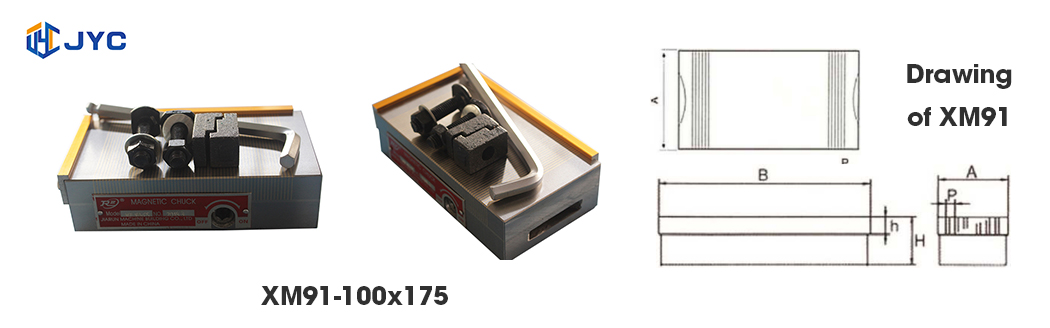

Model	Dimensions (MM)			Polar Distance (P)	Magnetism (N/cm2)	Net Weight (KG)
Model	Length	Breadth	Height	Polar Distance (P)	Magnetism (N/cm2)	Net Weight (KG)
XM91-100*175	175	100	45	1.5+0.5	≥100	6
XM91-125*250	250	125	45	1.5+0.5	≥100	10
XM91-150*150	150	150	45	1.5+0.5	≥100	7
XM91-150*300	300	150	45	1.5+0.5	≥100	14
XM91-150*350	350	150	45	1.5+0.5	≥100	17
XM91-150*400	400	150	45	1.5+0.5	≥100	21
XM91-150*450	450	150	45	1.5+0.5	≥100	23
XM91-200*400	400	200	45	1.5+0.5	≥100	28
XM91-200*450	450	200	45	1.5+0.5	≥100	31
XM91-200*500	500	200	45	1.5+0.5	≥100	35
XM91-200*560	560	200	45	1.5+0.5	≥100	39
XM91-250*500	500	250	45	1.5+0.5	≥100	44
XM91-300*500	500	300	45	1.5+0.5	≥100	52
XM91-300*600	600	300	45	1.5+0.5	≥100	63
Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (through hole/pressing block).
