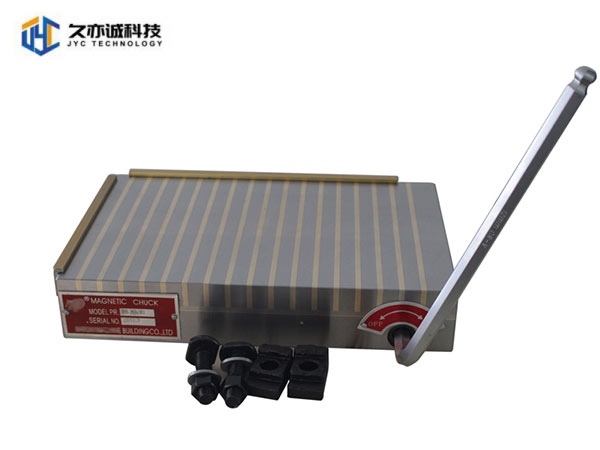

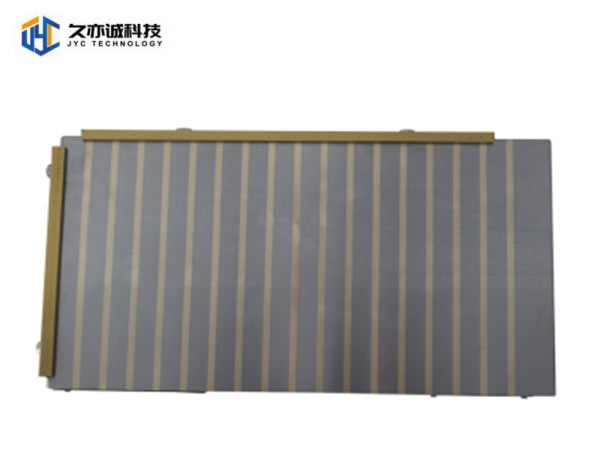

XCM91 poweful permanent magnetic chuck

ASK for quote

Detail

Features

·suitable for CNC machining, precision milling machine.
·Unique magnetic circuit design, makes the suction very strong and uniform, high quality magnets can ensure the long term stable suction
·suction up to 180 N/cm2.
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy.

Magnetic chuck VS traditional clamping

Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more

Different magnet types

There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
Read more

Specifications
Applications
Accessories

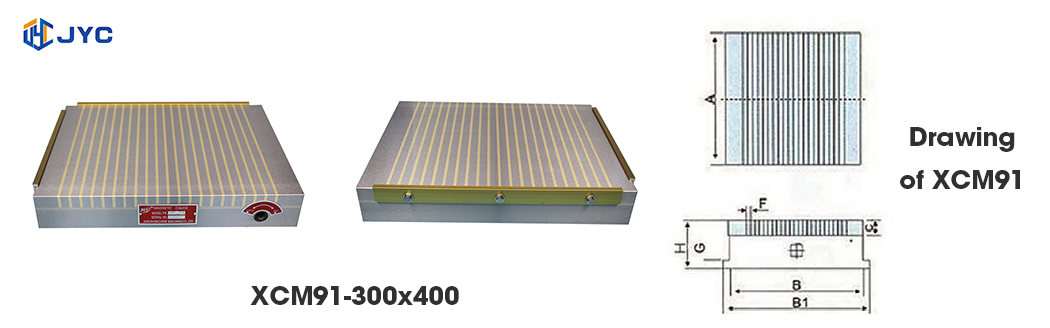

Model	Dimensions (MM)							Net Weight (KG)
Model	A	B	B1	C	F	H	G	Net Weight (KG)
XCM91 200x200	200	200	220	25	12+4	75	20	21
XCM91 200x300	200	300	320	25	12+4	75	20	32
XCM91 200x400	200	400	400	25	12+4	75	20	42
XCM91 250x250	250	250	270	25	12+4	75	20	33
XCM91 300x300	300	300	320	25	12+4	75	20	47
XCM91 300x400	300	400	420	25	12+4	75	20	63
XCM91 300x500	300	500	500	25	12+4	75	25	79
XCM91 300x600	300	600	600	25	12+4	75	25	95
XCM91 300x800	300	800	800	25	12+4	75	25	126
XCM91 350x350	350	350	370	25	12+4	75	25	65
XCM91 400x400	400	400	420	25	12+4	75	25	83
XCM91 400x500	400	500	500	25	12+4	75	25	106
XCM91 400x600	400	600	600	25	12+4	75	25	127
XCM91 400x800	400	800	800	25	12+4	75	25	168
XCM91 450x450	450	450	470	25	12+4	75	25	106
XCM91 500x500	500	500	520	25	12+4	75	25	132
XCM91 500x600	500	600	620	25	12+4	75	25	158
XCM91 600x600	600	600	620	25	12+4	75	25	190
Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (through hole/pressing block).
