Model |
Piston area(cm2) |
Piston Stroke(mm) |
Max. Pressure(kgf) |
Limited rotating speed(r/min) |
Max. push-pull force(kgf) |
inertia(kg.m2) |
Net weight(kg) |
||
Push side |
Pull side |
Push side |
Pull Side |
||||||
SY-65 |
31.64 |
29.38 |
15 |
35 |
6000 |
1139 |
1057 |
0.01 |
2.65 |
SY-80 |
48.67 |
45.33 |
15 |
40 |
6000 |
1752 |
1631 |
0.01 |
3.6 |
SY-100 |
76.93 |
73.6 |
20 |
40 |
5500 |
2769 |
2649 |
0.04 |
4.8 |
SY-100K |
76.93 |
71.4 |
20 |
40 |
5500 |
2769 |
2570 |
0.04 |
4.8 |
SY-125 |
120.89 |
115.55 |
25 |
40 |
5000 |
4352 |
4160 |
0.08 |
6.5 |
SY-125K |
120.89 |
113 |
25 |
40 |
5000 |
4352 |
4060 |
0.08 |
6.5 |
SY-150 |
175 |
160.7 |
30 |
40 |
5000 |
6300 |
5785 |
0.18 |
10.5 |
SY-200 |
312.5 |
287.2 |
35 |
35 |
4000 |
11250 |
10339 |
0.38 |
18.7 |

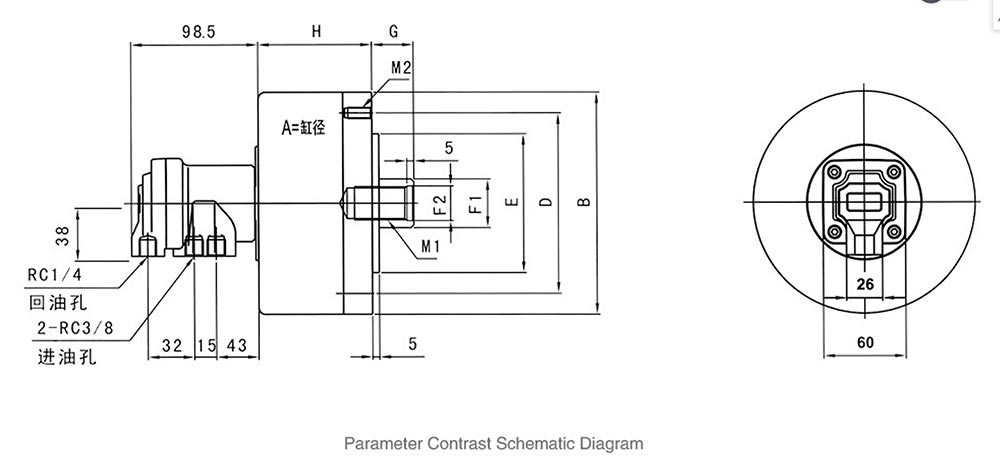

Model |
A |
B |
D |
E(h7) |
F1 |
F2(H8) |
G |
H |
M1 |
M2 |
|
MAX |
MIN |
||||||||||
SY-65 |
65 |
98 |
80 |
60 |
22 |
13 |
45 |
30 |
71 |
M12 x 25 |
6-M8 x 16 |
SY-80 |
80 |
112 |
90 |
65 |
25 |
17 |
45 |
30 |
73 |
M16 x 30 |
6-M8 x 16 |
SY-100 |
100 |
135 |
100 |
80 |
28 |
17 |
45 |
25 |
82 |
M16 x 30 |
6-M10 x 16 |
SY-100K |
100 |
135 |
100 |
80 |
28 |
21 |
45 |
25 |
82 |
M20 x 35 |
6-M10 x 16 |
SY-125 |
125 |
160 |
130 |
110 |
35 |
21 |
50 |
25 |
91 |
M20 x 35 |
6-M12 x 16 |
SY-125K |
125 |
160 |
130 |
110 |
35 |
25 |
50 |
25 |
91 |
M24 x 40 |
6-M12 x 16 |
SY-150 |
150 |
190 |
130 |
110 |
45 |
31 |
55 |
25 |
98 |
M30 x 45 |
12-M12 x 20 |
SY-200 |
200 |
245 |
145 |
120 |
55 |
37 |
57 |
22 |
126 |
M36 x 55 |
12-M16 x 28 |
