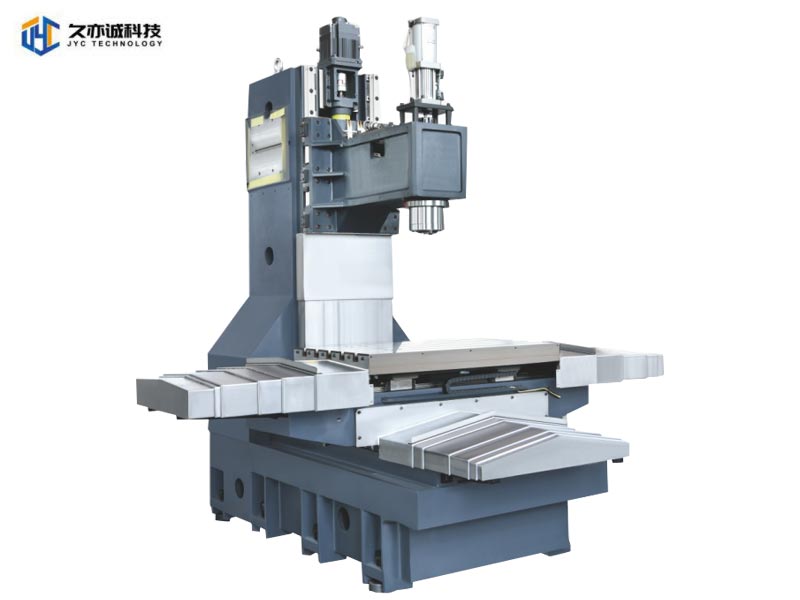

HT300 castings, manual aging after secondary annealing.
Z-axis is designed without counterweight block. The servo motor with enlarged brake is adopted to adjust the feed procesing without vibration.

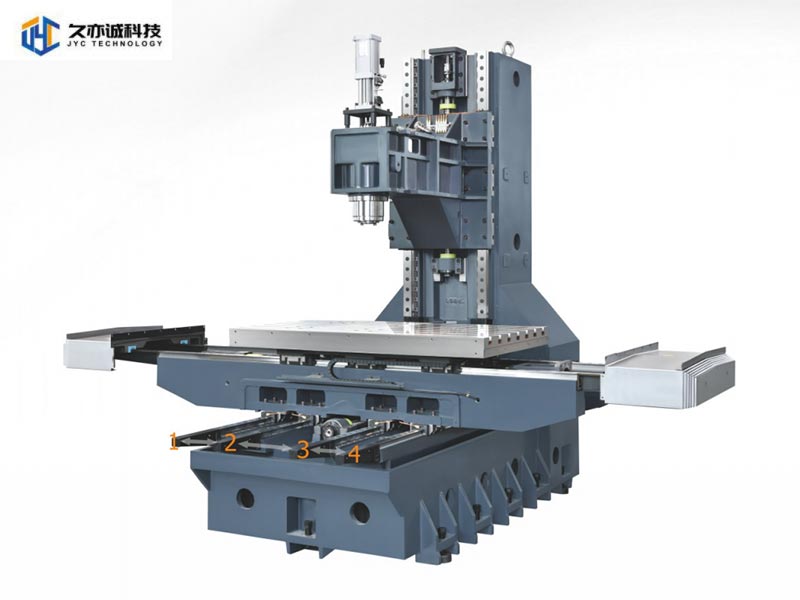

CV866 Z-axis adopts six sliding block support, more rigid, Z, Y axis adopts 45mm wide linear guide,
|
|
Machinery specification |
Untis |
CV-600 |
CV-650 |
|
Processing range |
X-axis stroke |
mm |
600 |
650 |
|
Y-axis stroke |
mm |
400 |
500 |
|
|
Z-axis stroke |
mm |
450 |
500 |
|
|
Workbench |
Workbench size |
mm |
700*420 |
800*500 |
|
Workbench bearing |
kg |
250 |
450 |
|
|
Workbench T slote size |
|
3-14-120 |
3-18-120 |
|
|
Distance from table to spindle nose |
mm |
150-600 |
150-650 |
|
|
Spindle |
Distance from spindle center to column track plane |
mm |
470 |
545 |
|
Spindle taper hole specification |
|
BT40 Φ120 |
BT40 Φ120 |
|
|
Speed of spindle |
rpm |
10000(belt)/12000(direct connection) |
10000(belt)/12000(direct connection) |
|
|
Spindle motor power |
kw |
7.5/11 |
7.5/11 |
|
|
Triaxial |
Triaxial motor powerX/Y/Z |
kw |
1.5/1.5/3 |
2/2/3 |
|
Triaxial rapid displacementX/Y/Z |
m/min |
48/48/48 |
48/48/48 |
|
|
Triaxial cutting feed rate |
mm/min |
1-10000 |
1-10000 |
|
|
Precision |
Positional accuracy |
mm |
±0.003/300 |
±0.003/300 |
|
Repeated accuracy |
mm |
±0.0025/300 |
±0.0025/300 |
|
|

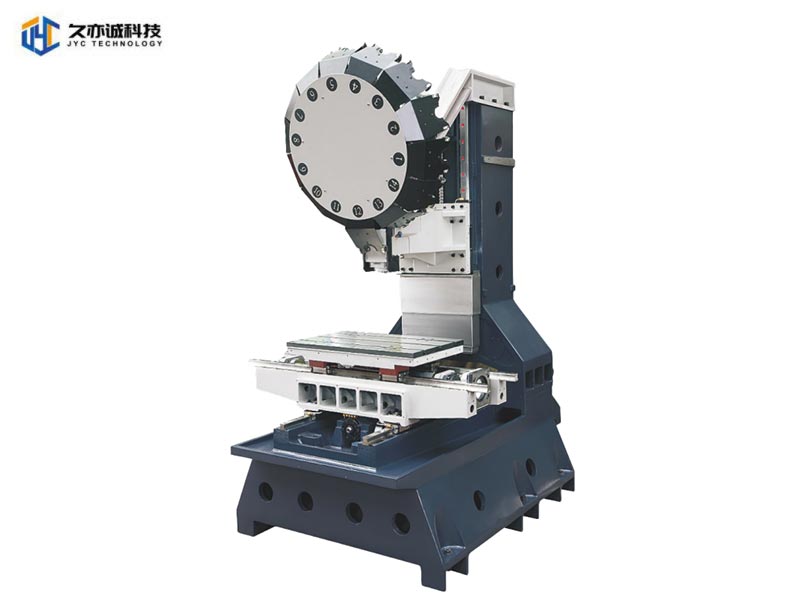

Magazine tool |
Tool change type |
|
Disc type(Knife arm type) |
Disc type(Knife arm type) |
|
Tool storage capacity |
pcs |
20 |
24 |
|
|
Others |
Power demand |
KVA |
20 |
20 |
|
Barometric demand |
kg/cm^2 |
≥6 |
≥6 |
|
|
Z-axis counterweight mode |
|
|
|
|
|
Total weight |
kg |
3500 |
4500 |
|
|
Floor space(Length*width*height) |
mm |
2000*2450*2500 |
2300*2450*2600 |
|
|
Controller |
|
FANUC/Mitsubishi |
FANUC/Mitsubishi |
