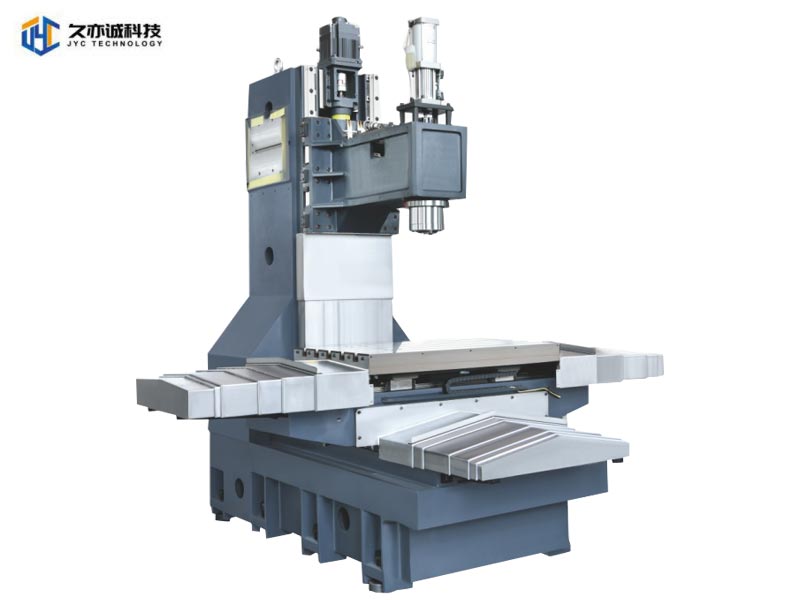

Heringbone column structure design, rice reinforcement +tic-bar reinforcement, high bending stiffnes, and the bed ultra-high connection rigidity
HT300 castings, manual aging after secondary annealing.
Z axis adopts nitrogen balance cylinder design to reduce the load of Z axis.
Three axes adopt flange lengthened slider, , Y axis six slider design with hard rail heavy cutting.
Y-axis four quide rail support, strong bending resistance of sliding saddle, optimal sliding rail span design, to ensure the rigidity of casting support
|
Machinery specification |
Untis |
CV-1380 |
CV-1580 |
|
|
Processing range |
X-axis stroke |
mm |
1300 |
1500 |
|
Y-axis stroke |
mm |
800 |
800 |
|
|
Z-axis stroke |
mm |
700 |
700 |
|
|
Workbench |
Workbench size |
mm |
1400*800 |
1600*800 |
|
Workbench bearing |
kg |
1200 |
1500 |
|
|
Workbench T slote size |
7-22-100 |
7-22-110 |
||
|
Distance from table to spindle nose |
mm |
125-825 |
155-855 |
|
|
Spindle |
Distance from spindle center to column track plane |
mm |
850 |
855 |
|
Spindle taper hole specification |
BT50 |
BT50 |
||
|
Speed of spindle |
rpm |
6000 |
6000 |
|
|
Spindle motor power |
kw |
15/18.5 |
15/18.5(Wide area motor) |
|
|
Triaxial |
Triaxial motor powerX/Y/Z |
kw |
3/3/3 |
4.5/4.5/4.5 |
|
Triaxial rapid displacementX/Y/Z |
m/min |
36/36/24 |
20/20/20 |
|
|
Triaxial cutting feed rate |
mm/min |
1-10000 |
1-10000 |
|
|
Precision |
Positional accuracy |
mm |
±0.003/300 |
±0.003/300 |
|
Repeated accuracy |
mm |
±0.003/300 |
±0.003/300 |
|
|
Magazine tool |
Tool change type |
Disc type |
Disc type |
|
|
Tool storage capacity |
pcs |
24 |
24 |
|
|
Others |
Power demand |
KVA |
20 |
20 |
|
Barometric demand |
kg/cm^2 |
≥6 |
≥6 |
|
|
Z-axis counterweight mode |
Nitrogen |
Nitrogen |
||
|
Total weight |
kg |
11000 |
12000 |
|
|
Floor space(Length*width*height) |
mm |
3757*3110*3000 |
4300*3300*3200 |
|
|
Controller |
FANUC/Mitsubishi |
FANUC/Mitsubishi |
