Fetures:
· No need of changing machine tool structure, users only need to install flange with corresponding size of chuck.
· Itself as cylinder and internally-installed piston, the chuck carrires out clamping and loosing actions by controlling devices in spindle end.
· Center is solid, with powerful clamping force.
· Suitable for processing gears, biscuit, short shaft and so on.
Model |
Jaw Stroke t (Diamteter) |
Max. gripping force(kN) |
Max. bracing force(kN) |
Available pressure(Mpa) |
Limited rotating speed(r/min) |
Clamping range |
Bracing range |
Net weight(kg) |
BK110SQ |
3.68 |
17.5 |
9.28 |
0.4-0.8 |
4500 |
2-115 |
15-120 |
6 |
BK130SQ |
3.15 |
27.2 |
16.7 |
0.4-0.8 |
4000 |
2-130 |
20-140 |
9 |
BK160SQ |
3.68 |
47.3 |
24.1 |
0.4-0.8 |
3500 |
2-170 |
20-180 |
14 |
BK200SQ |
4.22 |
65 |
37.1 |
0.4-0.8 |
3000 |
5-210 |
20-240 |
22.6 |
BK250SQ |
4.75 |
87.5 |
56.1 |
0.4-0.8 |
2800 |
10-260 |
30-280 |
33.4 |
BK320SQ |
8.5 |
135.7 |
91.2 |
0.4-0.8 |
2300 |
10-350 |
40-360 |
73 |
BK400SQ |
11.5 |
170 |
117.4 |
0.4-0.8 |
1000 |
15-420 |
50-430 |
128 |
BK500SQ |
20 |
230 |
165 |
0.4-0.8 |
1000 |
20-520 |
50-530 |
200 |

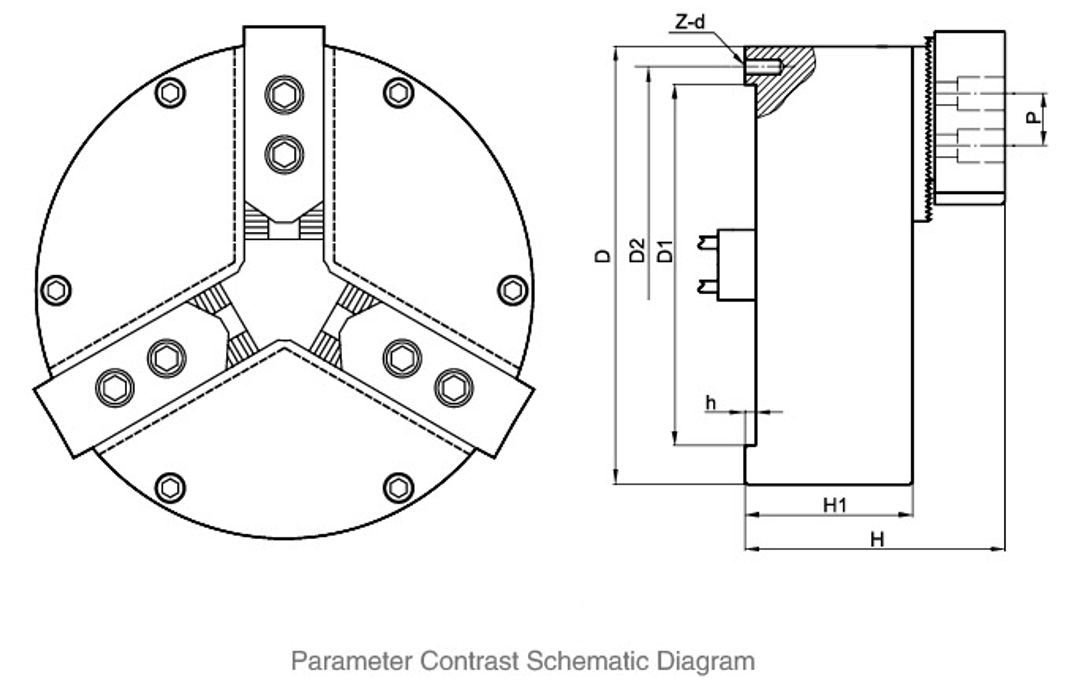

Model |
D |
D1 |
D2 |
H |
H1 |
h |
p |
z-d |
BK110SQ |
115 |
72 |
102 |
106 |
81 |
3 |
16 |
3-M8 |
BK130SQ |
135 |
95 |
108 |
123 |
92 |
4.5 |
18 |
3-M8 |
BK160SQ |
172 |
130 |
142 |
129 |
93 |
4.5 |
20 |
3-M8 |
BK200SQ |
210 |
165 |
180 |
133 |
97 |
5 |
25 |
3-M10 |
BK250SQ |
250 |
206 |
226 |
145 |
99 |
5 |
30 |
3-M12 |
BK320SQ |
325 |
270 |
290 |
177 |
116 |
5 |
32 |
6-M12 |
BK400SQ |
400 |
340 |
368 |
216 |
141 |
6 |
40 |
6-M16 |
BK500SQ |
500 |
440 |
465 |
256 |
183 |
6 |
60 |
6-M16 |
Note: Other specifications can be customized ,please call for further information.
