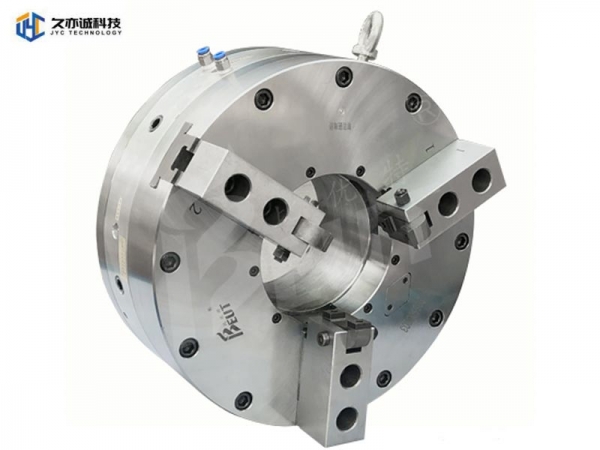

Fetures:
· No need to change machine structure, users only need to install flange with corresponding size of chuck.· Clamping and loosing by rotary air inlet at side of the chuck.
· Less weight, big hole diameter, high stroker and high rotating speed.
· Suitable for lathe, pipe thread machine and welding equipments.
|
Model |
Jaw Stroke t (Diamteter) |
Max. gripping force(kN) |
Available pressure(Mpa) |
Limited rotating speed(r/min) |
Clamping range |
Net weight(kg) |
|
BK80TQ |
3.2 |
3.3 |
0.4-0.9 |
4200 |
1.5-80 |
4.2 |
|
BK130TQ |
3.7 |
15 |
0.4-0.9 |
2850 |
2-130 |
11 |
|
BK160TQ |
4.2 |
28 |
0.4-0.9 |
2300 |
2-170 |
17.5 |
|
BK200TQ |
4.7 |
41.7 |
0.4-0.9 |
2000 |
5-210 |
25.5 |
|
BK250TQ |
5.4 |
58.2 |
0.4-0.9 |
1600 |
10-260 |
36.5 |
|
BK320TQ |
8.5 |
86.8 |
0.4-0.9 |
1200 |
60-350 |
63 |
|
BK400TQ |
12.7 |
82 |
0.4-0.9 |
750 |
10-410 |
126 |
|
BK500TQ |
16.4 |
128 |
0.4-0.9 |
650 |
20-510 |
198 |
|
BK630TQ |
16.4 |
191 |
0.4-0.9 |
500 |
20-650 |
310 |
|

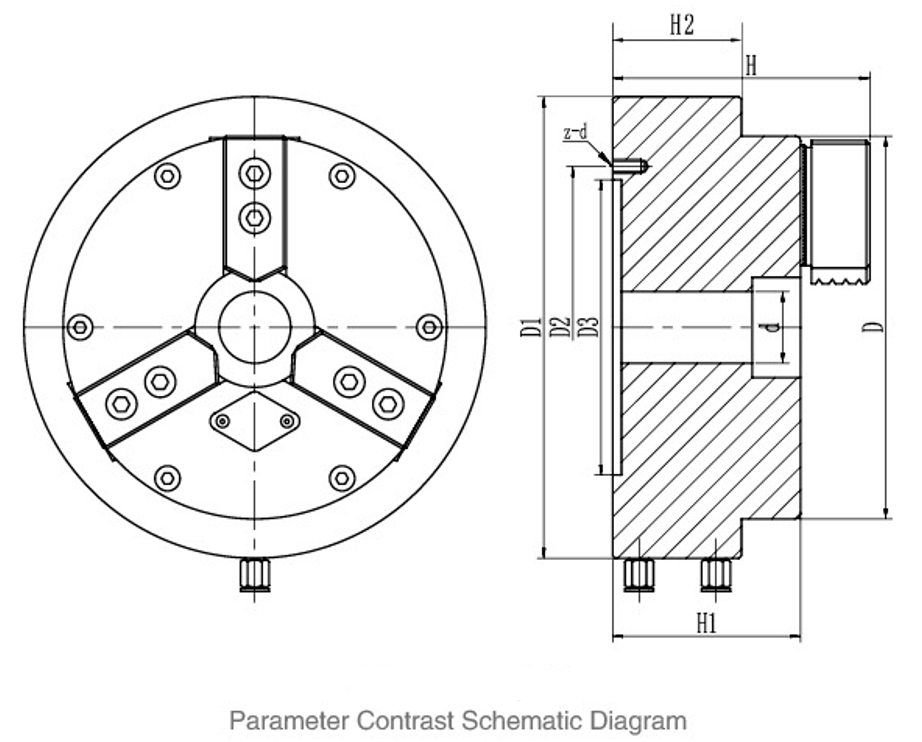

Model |
D |
D1 |
D2 |
D3 |
d |
H |
H1 |
H2 |
z-d |
|
BK80TQ |
88 |
110 |
66 |
55 |
12 |
106 |
85 |
60 |
3-M6 |
|
BK130TQ |
135 |
175 |
108 |
95 |
25 |
132 |
101 |
66 |
3-M8 |
|
BK160TQ |
175 |
219 |
142 |
130 |
35 |
138 |
103 |
72 |
3-M8 |
|
BK200TQ |
214 |
258 |
180 |
165 |
52 |
145 |
105 |
72 |
3-M10 |
|
BK250TQ |
256 |
300 |
226 |
206 |
80 |
154 |
107 |
72 |
3-M12 |
|
BK320TQ |
325 |
373 |
290 |
270 |
130 |
188 |
136 |
80 |
6-M12 |
|
BK400TQ |
408 |
448 |
368 |
465 |
170 |
249 |
177 |
89 |
3-M16 |
|
BK500TQ |
500 |
500 |
340 |
440 |
210 |
275 |
199 |
--- |
6-M16 |
|
BK630TQ |
630 |
630 |
595 |
560 |
300 |
276 |
199 |
--- |
6-M16 |
Note: Other specifications can be customized ,please call for further information.
