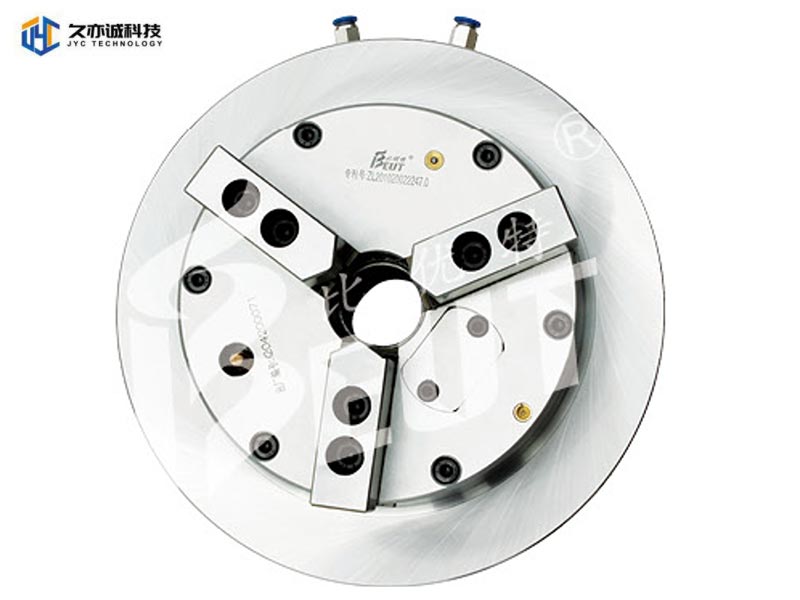

Fetures:
· Internally installed with cylinder and piston
· It carrires out clamping and loosing actions by controlling devices in spindle end.
· Center is solid, with strong clamping force
·Suitable for processing parts like valves, pumps, etc.
|
Model |
Jaw Stroke t (Diamteter) |
Max. gripping force(kN) |
Max. bracing force(kN) |
Available pressure(Mpa) |
Limited rotating speed(r/min) |
Clamping range |
Bracing range |
Net weight(kg) |
|
BK110SQ-2 |
3.68 |
17.5 |
9.28 |
0.4-0.8 |
4500 |
2-115 |
15-120 |
5.7 |
|
BK130SQ-2 |
3.15 |
27.2 |
16.7 |
0.4-0.8 |
4000 |
2-130 |
20-140 |
8.7 |
|
BK160SQ-2/4 |
3.68 |
47.3 |
24.1 |
0.4-0.8 |
3500 |
2-170 |
20-180 |
13/16 |
|
BK200SQ-2/4 |
4.22 |
65 |
37.1 |
0.4-0.8 |
3000 |
5-210 |
20-240 |
22/23.2 |
|
BK250SQ-2/4 |
4.75 |
87.5 |
56.1 |
0.4-0.8 |
2800 |
10-260 |
30-280 |
32/34.8 |
|
BK320SQ-2/4 |
8.5 |
135.7 |
91.2 |
0.4-0.8 |
2300 |
10-350 |
40-360 |
71/75 |
|
BK400SQ-2/4 |
11.5 |
170 |
117.4 |
0.4-0.8 |
1000 |
15-420 |
50-430 |
126/130 |
|

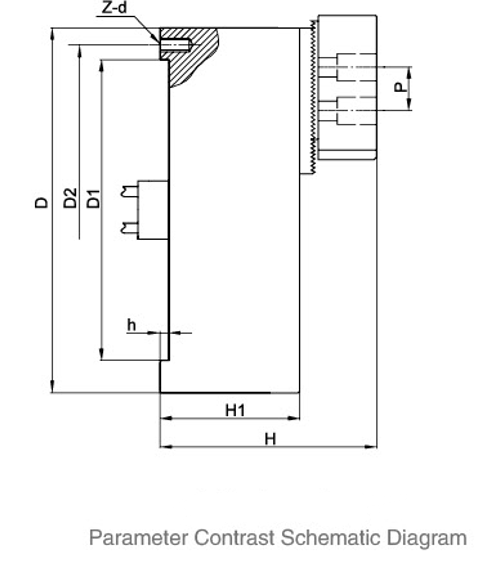

Model |
D |
D1 |
D2 |
H |
H1 |
h |
P |
z-d |
|
BK110SQ-2 |
115 |
72 |
102 |
106 |
81 |
3 |
16 |
3-M8 |
|
BK130SQ-2 |
135 |
95 |
108 |
123 |
92 |
4.5 |
18 |
3-M8 |
|
BK160SQ-2/4 |
172 |
130 |
142 |
129 |
93 |
4.5 |
20 |
3-M8 |
|
BK200SQ-2/4 |
210 |
165 |
180 |
133 |
97 |
5 |
25 |
3-M10 |
|
BK250SQ-2/4 |
250 |
206 |
226 |
145 |
99 |
5 |
30 |
3-M12 |
|
BK320SQ-2/4 |
325 |
270 |
290 |
177 |
116 |
5 |
32 |
6-M12 |
|
BK400SQ-2/4 |
400 |
340 |
368 |
216 |
141 |
6 |
40 |
6-M16 |
