Fetures:
· No need to change machine structure, users only need to install flange with corresponding size of chuck.· Clamping and loosing by rotary air inlet at side of the chuck.
· Less weight, big hole diameter, high stroker and high rotating speed.
· Suitable for lathe, pipe thread machine and welding equipments.
|
Model |
Jaw Stroke t (Diamteter) |
Max. gripping force(kN) |
Max. bracing force(kN) |
Available pressure(Mpa) |
Limited rotating speed(r/min) |
Clamping range |
Bracing range |
Net weight(kg) |
|
BK160KY |
5.1 |
60.1 |
36.1 |
2 |
3500 |
2-170 |
20-180 |
16 |
|
BK200KY |
7.5 |
90 |
54 |
2 |
3000 |
5-210 |
20-240 |
24 |
|
BK250KY |
8 |
110 |
66 |
2 |
2500 |
10-260 |
30-280 |
36 |
|

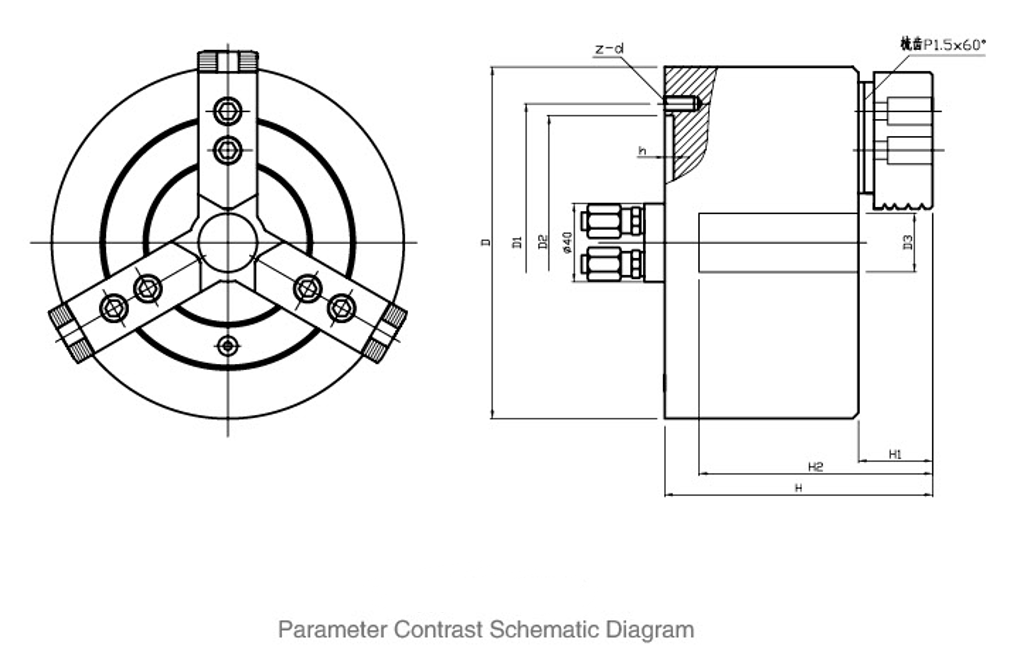

Model |
D |
D1 |
D2 |
D3 |
H |
H1 |
H2 |
h |
z-d |
|
BK160KY |
172 |
142 |
130 |
30 |
136 |
37 |
118 |
4.5 |
6-M8 |
|
BK200KY |
210 |
180 |
165 |
40 |
150 |
36 |
132 |
4.5 |
6-M10 |
|
BK250KY |
250 |
226 |
206 |
100 |
161 |
46 |
143 |
5 |
6-M12 |
Note: Other specifications can be customized ,please call for further information.
