Fetures:
· Internally installed with cylinder
· It carrires out clamping and loosing actions by taking in air from side without bracing structure.
· Suitable for drilling, milling, CNC center.
Model |
Jaw Stroke t(Diamteter) |
Max. gripping force(kN) |
Max. bracing force(kN) |
Available pressure(Mpa) |
Clamping range |
Bracing range |
Net weight(kg) |
BK160KL |
3.68 |
41.2 |
23.1 |
0.4-0.8 |
2-170 |
20-180 |
18.6 |
BK200KL |
4.22 |
59.3 |
35.1 |
0.4-0.8 |
5-210 |
20-240 |
28 |
BK250KL |
4.75 |
70.2 |
38.9 |
0.4-0.8 |
10-260 |
30-280 |
40 |
BK320KL |
9.5 |
126.8 |
68.6 |
0.4-0.8 |
10-350 |
40-360 |
86 |
BK400KL |
12.7 |
162 |
91 |
0.4-0.8 |
15-420 |
50-430 |
170 |

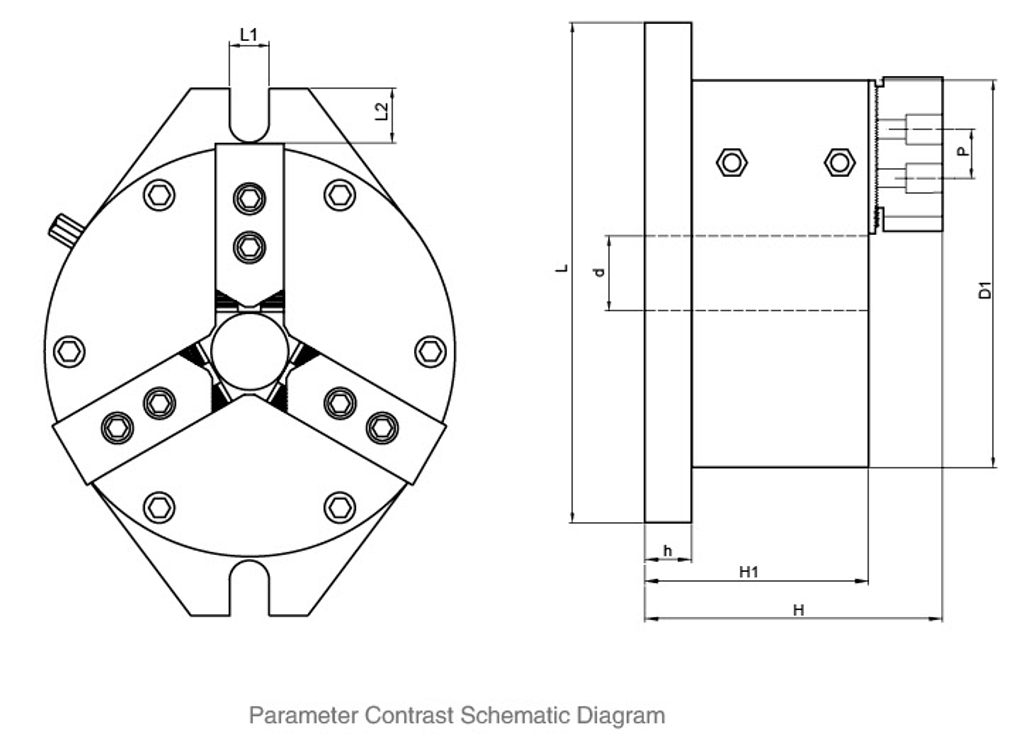

Model |
D |
d |
L |
L1 |
L2 |
H |
H1 |
h |
P |
BK160KL |
172 |
30 |
238 |
20 |
28 |
155 |
119 |
19 |
20 |
BK200KL |
210 |
40 |
290 |
20 |
28 |
158.5 |
122.5 |
19 |
25 |
BK250KL |
250 |
80 |
340 |
20 |
28 |
173 |
127 |
19 |
30 |
BK320KL |
325 |
120 |
415 |
20 |
28 |
243 |
182 |
22 |
32 |
BK400KL |
400 |
120 |
500 |
20 |
28 |
272 |
198 |
30 |
40 |
