Fetures:
· Internally installed with cylinder
· It carrires out clamping and loosing actions by taking in air from side without bracing structure.
· Suitable for drilling, milling, CNC center.
Model |
Jaw Stroke t(Diamteter) |
Max. gripping force(kN) |
Max. bracing force(kN) |
Available pressure(Mpa) |
Clamping range |
Bracing range |
Net weight(kg) |
BK110SL |
3.68 |
17.5 |
9.28 |
0.4-0.8 |
2-115 |
15-120 |
8.2 |
BK130SL |
3.15 |
27.2 |
16.7 |
0.4-0.8 |
2-130 |
20-140 |
12 |
BK160SL |
3.68 |
47.2 |
24.1 |
0.4-0.8 |
2-170 |
20-180 |
17.6 |
BK200SL |
4.22 |
65 |
37.1 |
0.4-0.8 |
5-210 |
20-240 |
27.6 |
BK250SL |
4.75 |
87.5 |
56.1 |
0.4-0.8 |
10-260 |
30-280 |
40 |
BK320SL |
8.5 |
135.7 |
91.2 |
0.4-0.8 |
10-350 |
40-360 |
81 |
BK400SL |
11.5 |
170 |
117.4 |
0.4-0.8 |
15-420 |
50-430 |
160 |

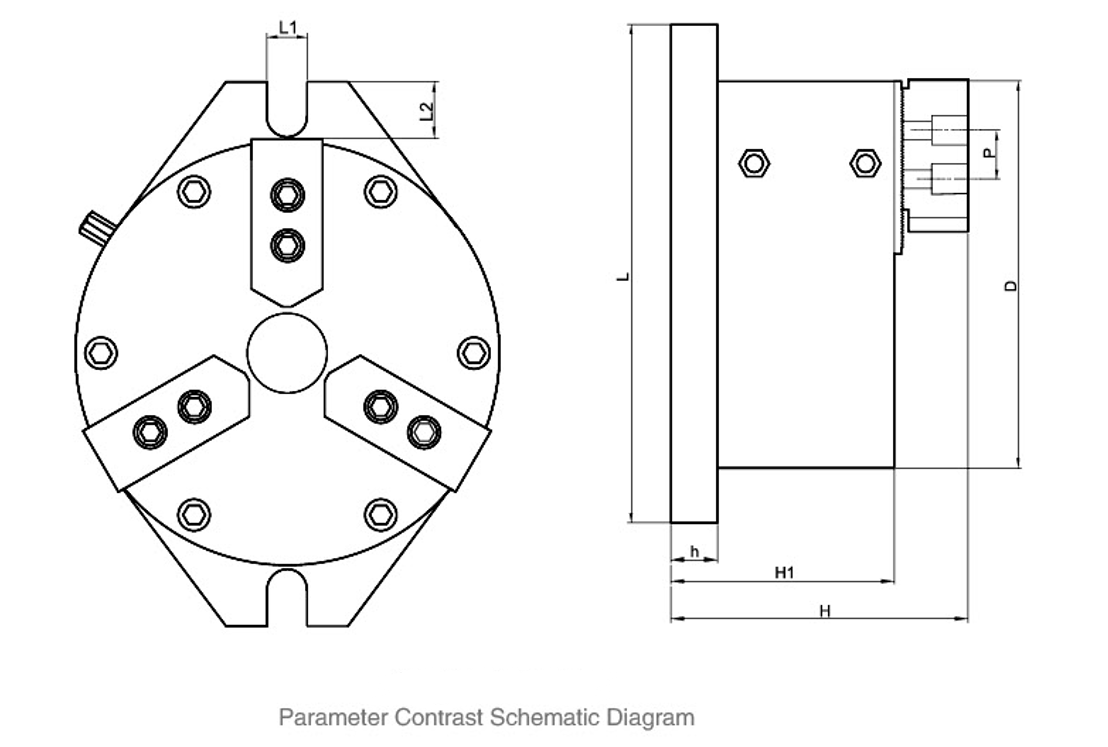

Model |
D |
L |
L1 |
L2 |
H |
H1 |
h |
P |
BK110SL |
115 |
165 |
13 |
18.5 |
125 |
100 |
19 |
16 |
BK130SL |
135 |
205 |
18 |
24 |
142 |
111 |
19 |
18 |
BK160SL |
170 |
238 |
20 |
28 |
148 |
112 |
19 |
20 |
BK200SL |
210 |
290 |
20 |
28 |
152 |
116 |
19 |
25 |
BK250SL |
250 |
340 |
20 |
28 |
164 |
118 |
19 |
30 |
BK320SL |
325 |
415 |
20 |
28 |
199 |
138 |
22 |
32 |
BK400SL |
400 |
500 |
20 |
28 |
246 |
171 |
36 |
40 |
