Features

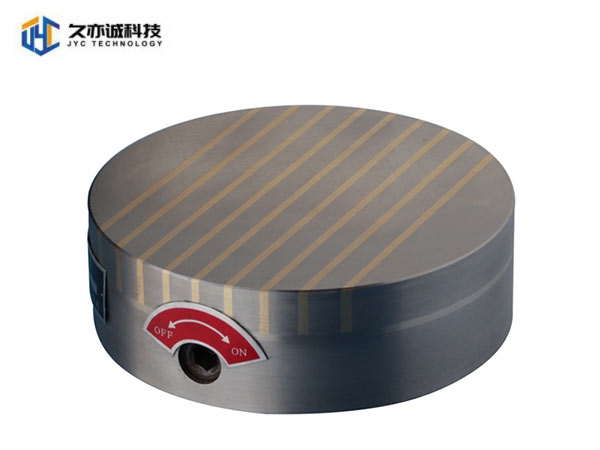

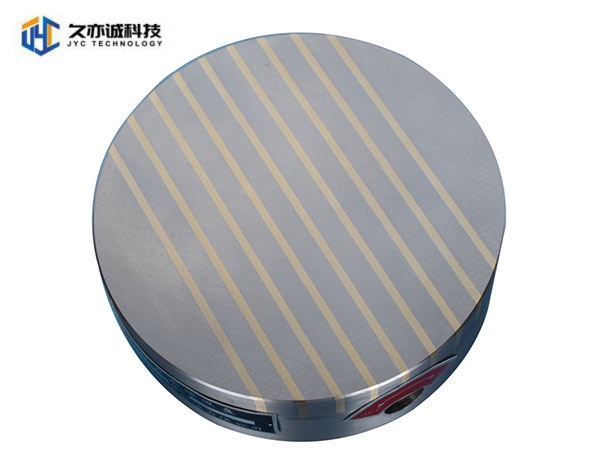

·Suitable for light cutting progress of small vertical plane grinder、outside cylindrical and internal grinder.
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy·
·Suction up to 150 N/cm2.
·Pole pitch：4mm+4mm or 4mm+12mm, customized
Magnetic chuck VS traditional clamping
Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more
Different magnet types
There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.

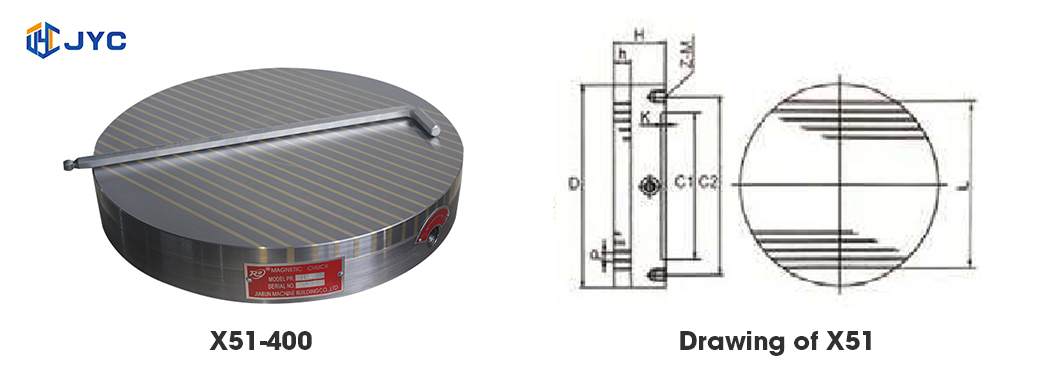

| Model | Dimensions (MM) | Polar pitch | Net Weight (kg) | |||||||
| D | H | h | C1 | C2 | K | Z | M | |||
| X51-125 | 125 | 65 | 18 | 80 | 105 | 2 | 4 | M8 | 16(4+12) or 8(4+4) | 5.6 |
| X51-150 | 150 | 65 | 18 | 110 | 130 | 2 | 4 | M8 | 8 | |
| X51-160 | 160 | 65 | 18 | 120 | 140 | 2 | 4 | M8 | 10 | |
| X51-200 | 200 | 65 | 20 | 160 | 180 | 2 | 4 | M10 | 18 | |
| X51-250 | 250 | 65 | 20 | 200 | 224 | 4 | 4 | M10 | 28 | |
| X51-300 | 300 | 65 | 20 | 230 | 260 | 4 | 4 | M10 | 35 | |
| X51-350 | 350 | 65 | 22 | 260 | 310 | 4 | 4 | M12 | 45 | |
| X51-400 | 400 | 70 | 22 | 300 | 360 | 4 | 6 | M12 | 60 | |
| X51-450 | 450 | 70 | 25 | 350 | 410 | 4 | 6 | M12 | 78 | |
| X51-500 | 500 | 70 | 25 | 380 | 440 | 4 | 6 | M12 | 97 | |
| X51-600 | 600 | 75 | 25 | 480 | 540 | 4 | 6 | M12 | 150 | |
| Note: Other specifications can be customized ,please call for further information. | ||||||||||
