·Suitable for light cutting progress of small vertical plane grinder、outside cylindrical and internal grinder.
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy
·Suction up to 150 N/cm2.
Magnetic chuck VS traditional clamping
Compared with traditional clamping, there are a lot of advantages for magnetic chuck,
Different magnet types
There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
More

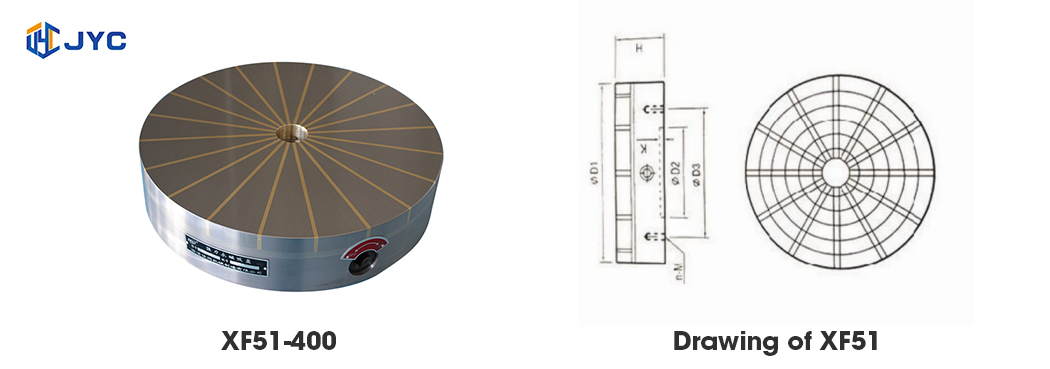

| Model | Dimensions (MM) | Polar form | Net Weight (kg) | |||||||
| D 1 | H | h | D2 | D3 | K | n | M | |||
| XF51-150 | 150 | 76 | 18 | 110 | 130 | 4 | 4 | M8 | Radial type | 8 |
| XF51-160 | 160 | 76 | 18 | 120 | 140 | 4 | 4 | M8 | 10 | |
| XF51-200 | 200 | 76 | 18 | 160 | 180 | 4 | 4 | M10 | 18 | |
| XF51-250 | 250 | 76 | 18 | 200 | 224 | 4 | 4 | M10 | 28 | |
| XF51-300 | 300 | 76 | 18 | 230 | 260 | 4 | 4 | M10 | 35 | |
| XI'51-350 | 350 | 80 | 20 | 260 | 310 | 4 | 4 | M12 | 45 | |
| XI?51-400 | 400 | 80 | 20 | 300 | 360 | 4 | 6 | M12 | 60 | |
| XF51-450 | 450 | 80 | 20 | 350 | 410 | 6 | 6 | Ml 2 | 75 | |
| XF51-500 | 500 | 90 | 25 | 380 | 440 | 6 | 6 | M12 | 145 | |
| XF51-600 | 600 | 90 | 25 | 480 | 540 | 6 | 6 | M12 | 210 | |
| Note: Other specifications can be customized ,please call for further information. | ||||||||||
