·Suitable for all kinds of precision plane grinder, high precision grinding
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy
·angle adjustable: ±90°, with high precision calibrated scale·Suction up to 100 N/cm2. higher suction can be customized.
·Pole pitch：1mm+0.5mm, customized
Magnetic chuck VS traditional clamping
Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more
There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
Read more

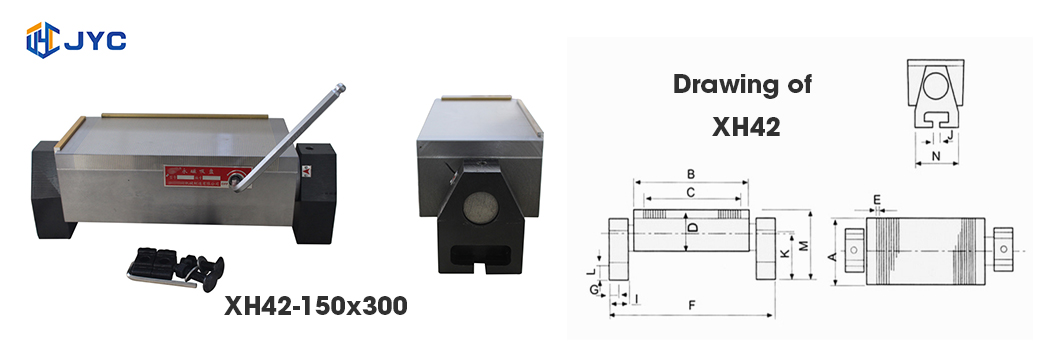

| Model | Dimensions (MM) | Net weight (KG) | ||||||||||||
| A | B | C | D | E | F | G | I | J | K | L | M | N | ||
| XH42 100*175A | 100 | 175 | 135 | 100 | 1.5(1+0.5) | 292 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 18.5 |
| XH42 125*250A | 125 | 250 | 250 | 100 | 1.5(1+0.5) | 370 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 25 |
| XH42 150*150A | 150 | 150 | 150 | 100 | 1.5(1+0.5) | 270 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 21 |
| XH42 150*300A | 150 | 300 | 300 | 100 | 1.5(1+0.5) | 420 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 31 |
| Note: Other specifications can be customized ,please contact us for further information. | ||||||||||||||
