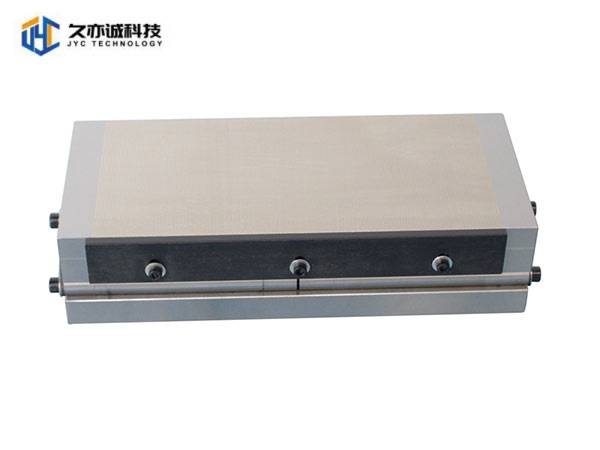

·Suitable for all kinds of flat grinding machine, electric discharge machine for precision milling and cutting process
·Magnetic line is dense, which makes the magnetism uniform, especially suitable for holding thin and small work piece
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy
·Pole pitch：0.5mm+1.5mm or 1mm+3mm, customized
·Suction up to 100 N/cm2. higher suction can be customized.

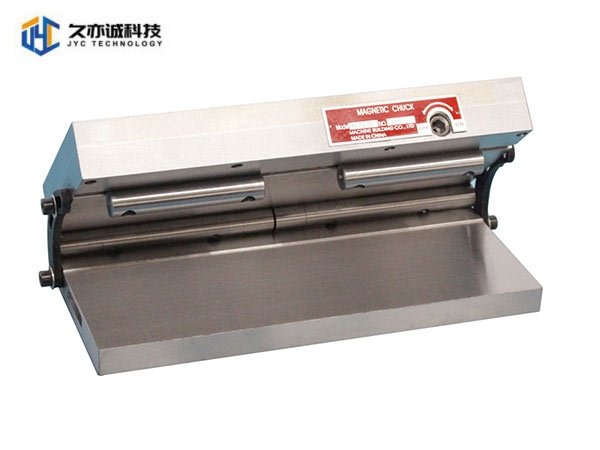

·Single side tillable, adjustable angle: 0 〜45°
Magnetic chuck VS traditional clamping
Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more
There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
Read more

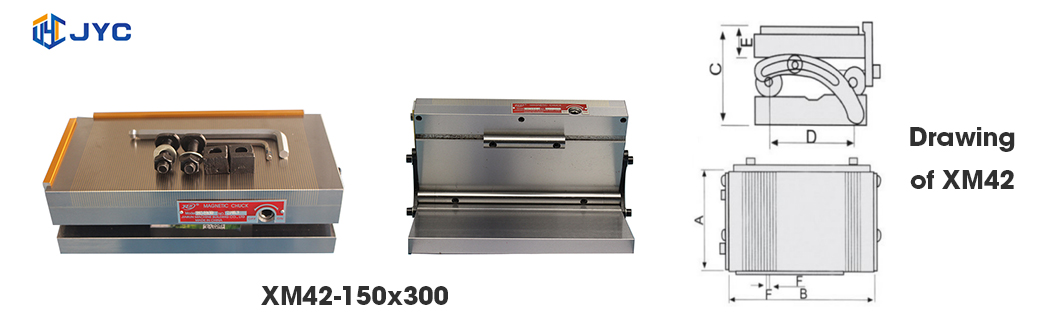

| Model | Dimensions (MM) | Processing angle | Net weight | |||||
| A | B | C | D | E | F | 0 〜45° | N.W(kg) | |
| XM42-100x175 | 100 | 175 | 85 | 75 | 20 | 0. 5+1. 5 | 0 〜45° | 10 |
| XM42-125x250 | 125 | 250 | 85 | 100 | 20 | 0.5+1. 5 | 0 〜45° | 12.5 |
| XM42 150x150 | 150 | 150 | 85 | 100 | 20 | 0. 5-H.5 | 0〜45° | 17 |
| XM42-150x300 | 150 | 300 | 85 | 100 | 20 | 0. 5+1. 5 | 0 〜45° | 25 |
| Note: Other specifications can be customized ,please call for further information. | ||||||||
