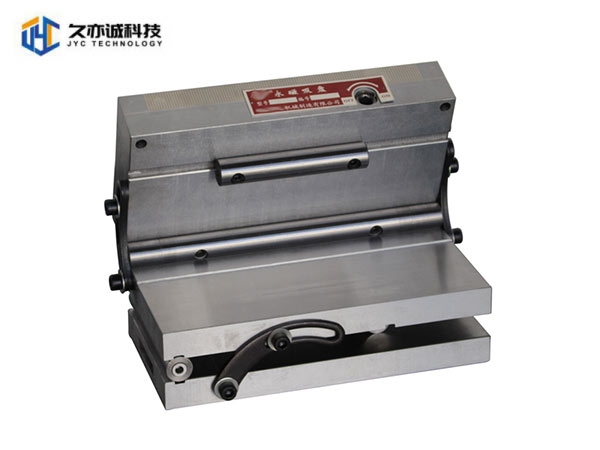

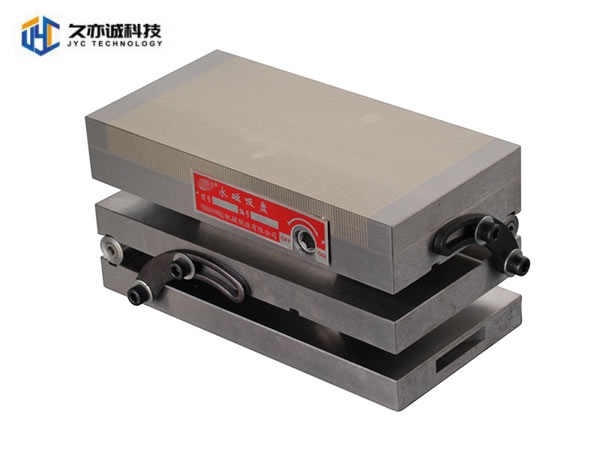

·Suitable for all kinds of precision plane grinder, high precision grinding
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy

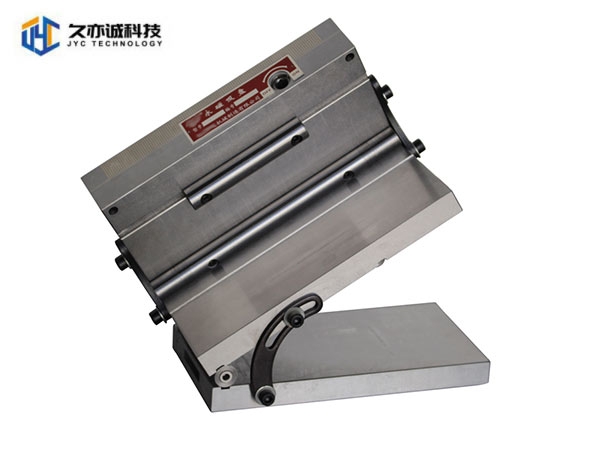

·angle adjustable: ±90°, with high precision calibrated scale·Suction up to 100 N/cm2. higher suction can be customized.
·Pole pitch：1mm+0.5mm, customized
Magnetic chuck VS traditional clamping
Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more
There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
Read more

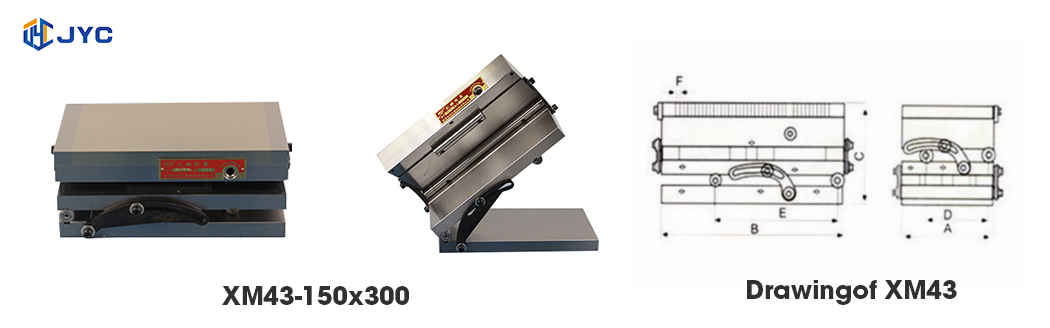

| Model | Dimensions (MM) | Grinding angle | Net weight | |||||
| A | B | C | D | E | F | N.W(kg) | ||
| XM43-100*175 | 100 | 175 | 115 | 75 | 100 | 0. 5+1.5 | 0-45 | 12 |
| XM43 125*250 | 125 | 250 | 115 | 75 | 150 | 0.5+1. 5 | 0-45 | 20 |
| XM43 150*150 | 150 | 150 | 115 | 100 | 100 | 0. 5+1.5 | 0-45 | 15 |
| XM43T 50*300 | 150 | 300 | 115 | 100 | 150 | 0. 5+1. 5 | 0-45 | 32 |
| Note: Other specifications can be customized ,please call for further information. | ||||||||
