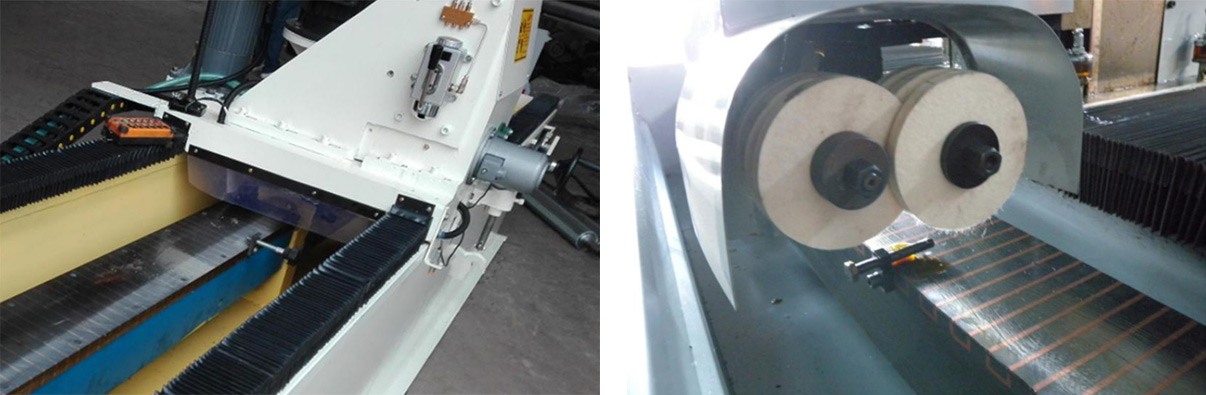

·Suitable for all kinds of knife grinder
·High rigidity, high precision, small thermal deformation
·No manpower required, easy to use.
·Suction up to 100 N/cm2. enough for grinding.
·Pole pitch：22mm, customized.
Electronic controller（optional）
If you don't have the control system to control the working state of this electromagnetic chuck, our controller is also a good choice.
With AC 0-380V, suitable for all kinds of situation.
With a basement, you can rotate the magnetic chuck for a good angle. Check here for XH42 rotatable permanent magnetic chuck and XG42 rotatable electromagnetic chuck..
Magnetic chuck VS traditional clamping
| Model | Dimensions (MM) | Polar Distance (P) | Voltage (V) | Current (A) | Power (W) | Net Weight (KG) | Overall size (CM) | ||
| Length | Breadth | Height | |||||||
| XZ11-120*1400 | 1400 | 120 | 120 | 22 | 110 | 1.54 | 169 | 126 | 160*22*22 |
| XZ11-120*1600 | 1600 | 120 | 120 | 22 | 110 | 1.84 | 202 | 143 | 180*22*22 |
| XZ11-140*1380 | 1380 | 140 | 130 | 22 | 110 | 1.52 | 167 | 186 | 158*24*23 |
| XZ11-150*1400 | 1400 | 150 | 110 | 22 | 110 | 1.6 | 176 | 145 | 160*25*21 |
| XZ11-160*1400 | 1400 | 160 | 110 | 22 | 110 | 1.77 | 195 | 150 | 160*26*21 |
| XZ11-160*1600 | 1600 | 160 | 120 | 22 | 110 | 2.2 | 242 | 187 | 180*26*22 |

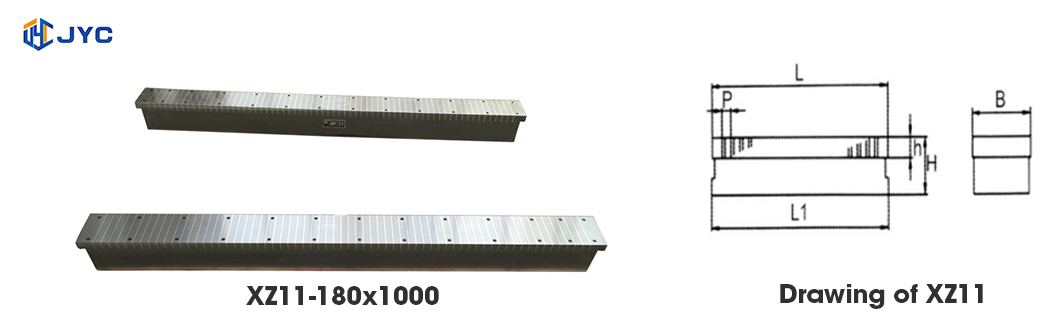

| XZ11-180*1000 | 1000 | 180 | 110 | 22 | 110 | 1 | 110 | 124 | 120*28*21 |
| XZ11-180*1500 | 1500 | 180 | 120 | 22 | 110 | 2 | 220 | 220 | 170*28*22 |
| XZ11-190*1680 | 1680 | 190 | 130 | 22 | 110 | 2.3 | 253 | 265 | 188*29*23 |
| XZ11-190*2200 | 2200 | 190 | 130 | 22 | 110 | 2.5 | 275 | 280 | 240*29*23 |
| XZ11-200*1000 | 1000 | 200 | 110 | 22 | 110 | 1.25 | 138 | 132 | 120*30*21 |
| XZ11-200*1470 | 1470 | 200 | 120 | 22 | 110 | 2.5 | 275 | 220 | 167*30*22 |
| XZ11-200*1550 | 1550 | 200 | 120 | 22 | 110 | 2.5 | 275 | 236 | 175*30*22 |
| XZ11-200*1600 | 1600 | 200 | 130 | 22 | 110 | 2.6 | 286 | 255 | 180*30*23 |
| XZ11-200*1760 | 1760 | 200 | 130 | 22 | 110 | 2.65 | 291 | 280 | 196*30*23 |
| XZ11-200*2270 | 2270 | 200 | 130 | 22 | 110 | 2.8 | 308 | 330 | 247*30*23 |
|
Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (through hole/pressing block). |
|||||||||
