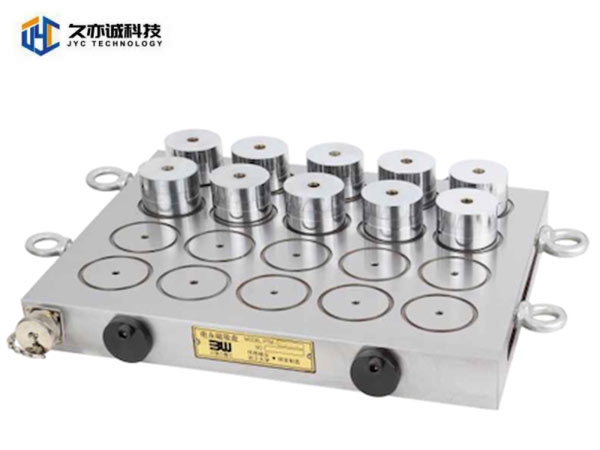

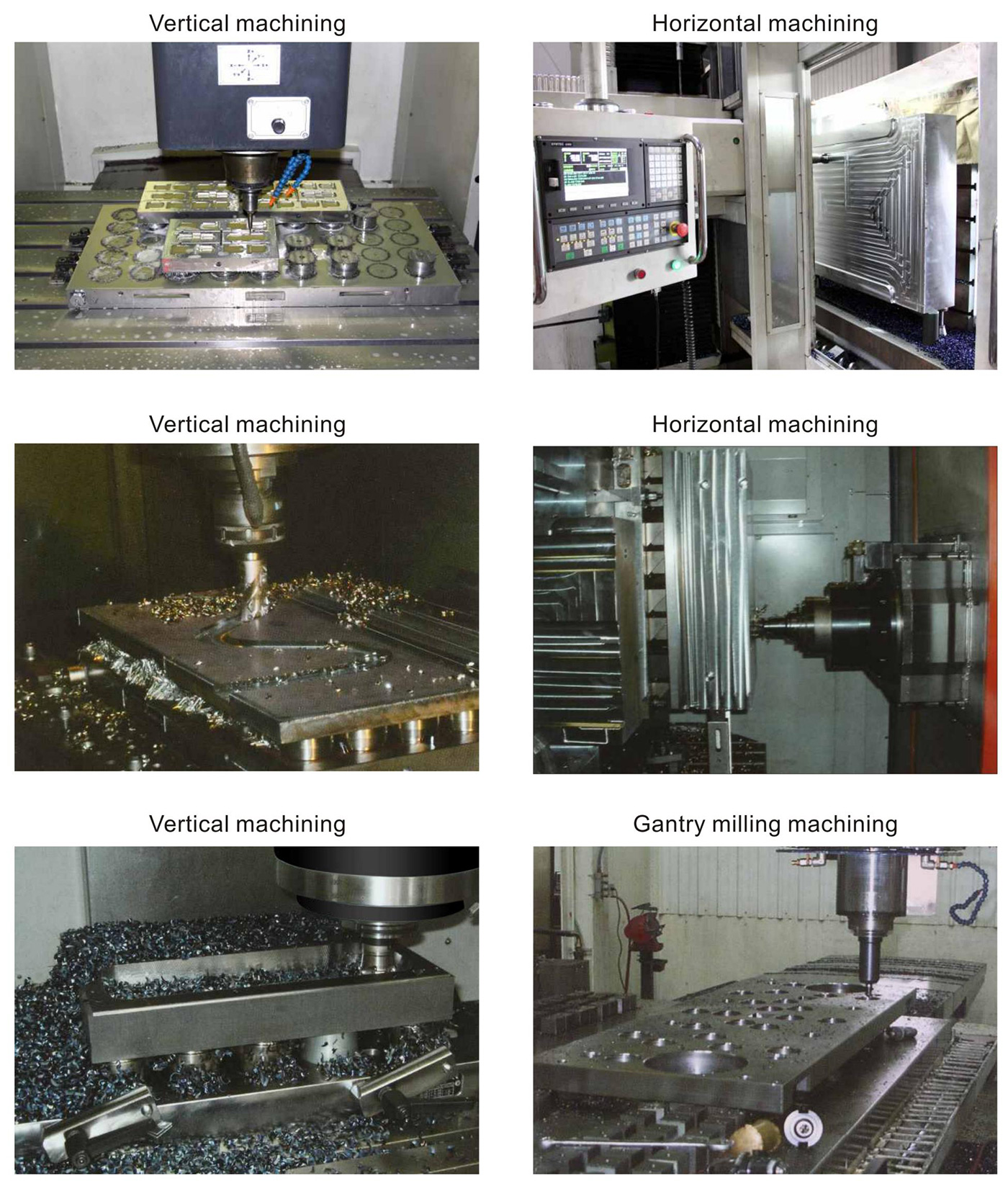

·Suitable for CNC milling machine
·Suction up to 160 N/cm2.
·No power need when it work, easy to operate, small heating deformation,no affection at the processing accuracy

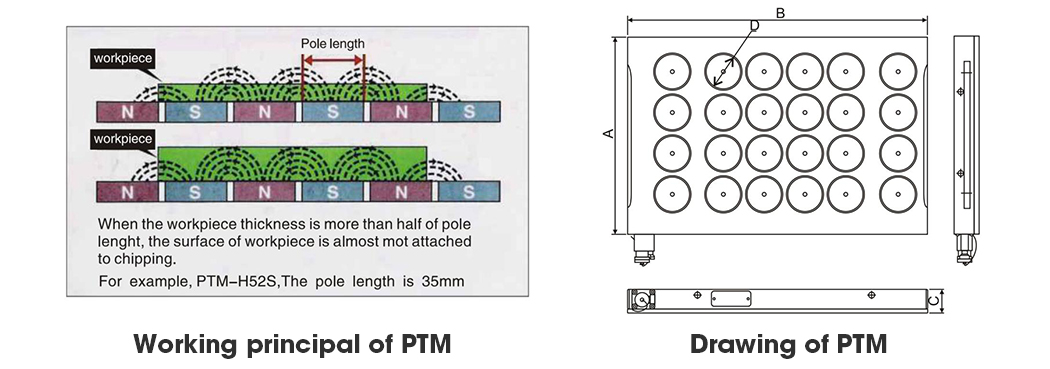

·Pole pitch：50x50mm, 70x70mm, customized

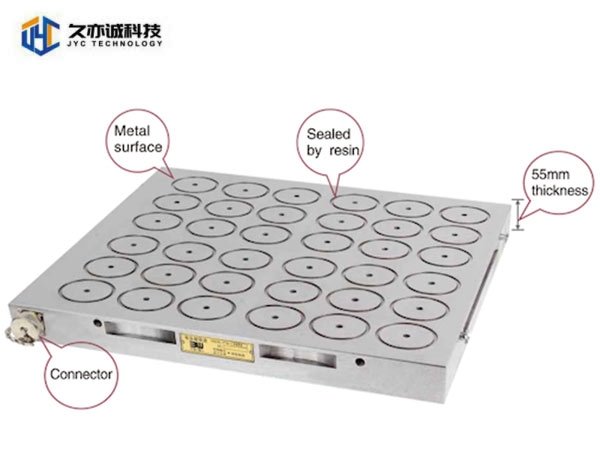

·Surface is made by all steel, better water proof, longer life.

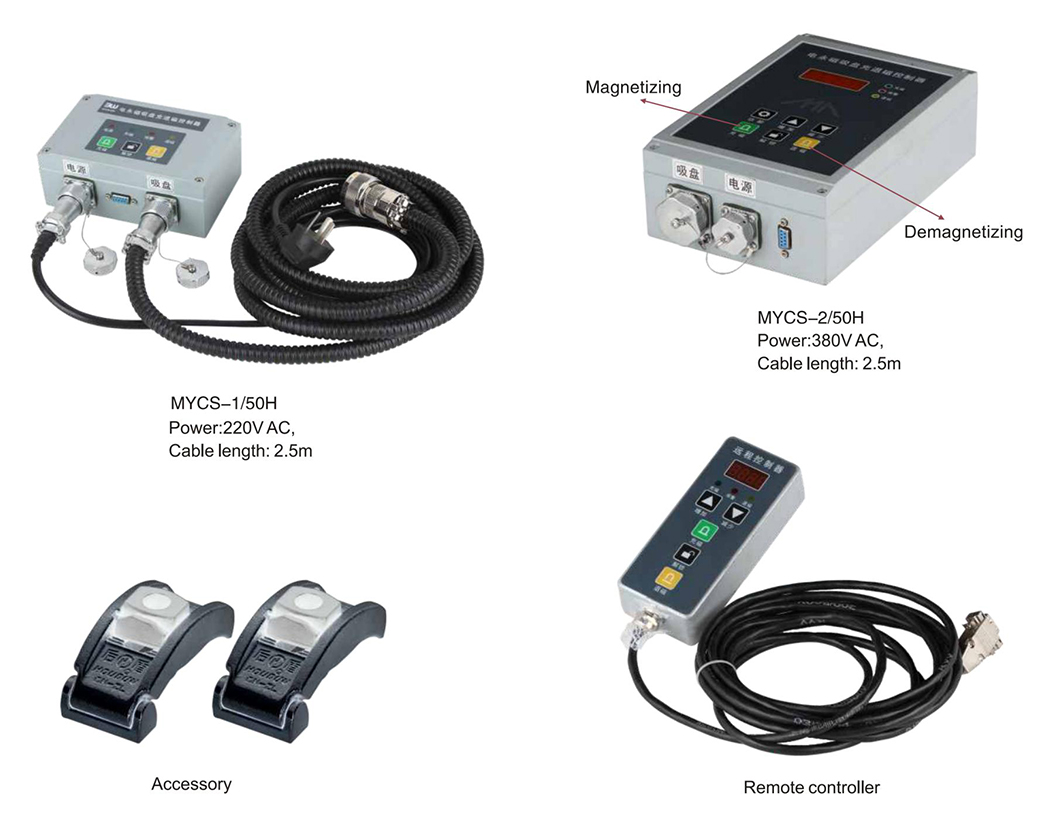

If you don't have the control system to control the working state of this chuck, please ask our sales for more information. Multiple control and remote control are all available.With AC 0-380V, suitable for all kinds of situation.

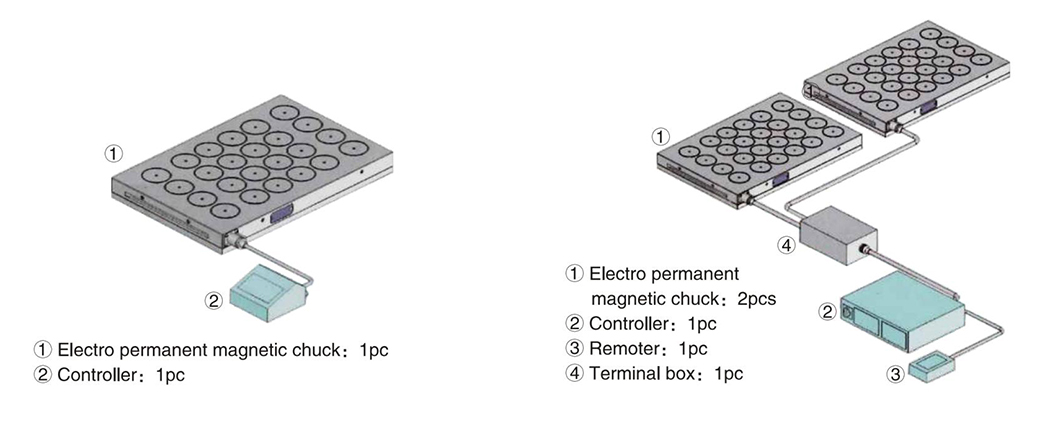

According to the machine table size, you can choose the number of chucks.

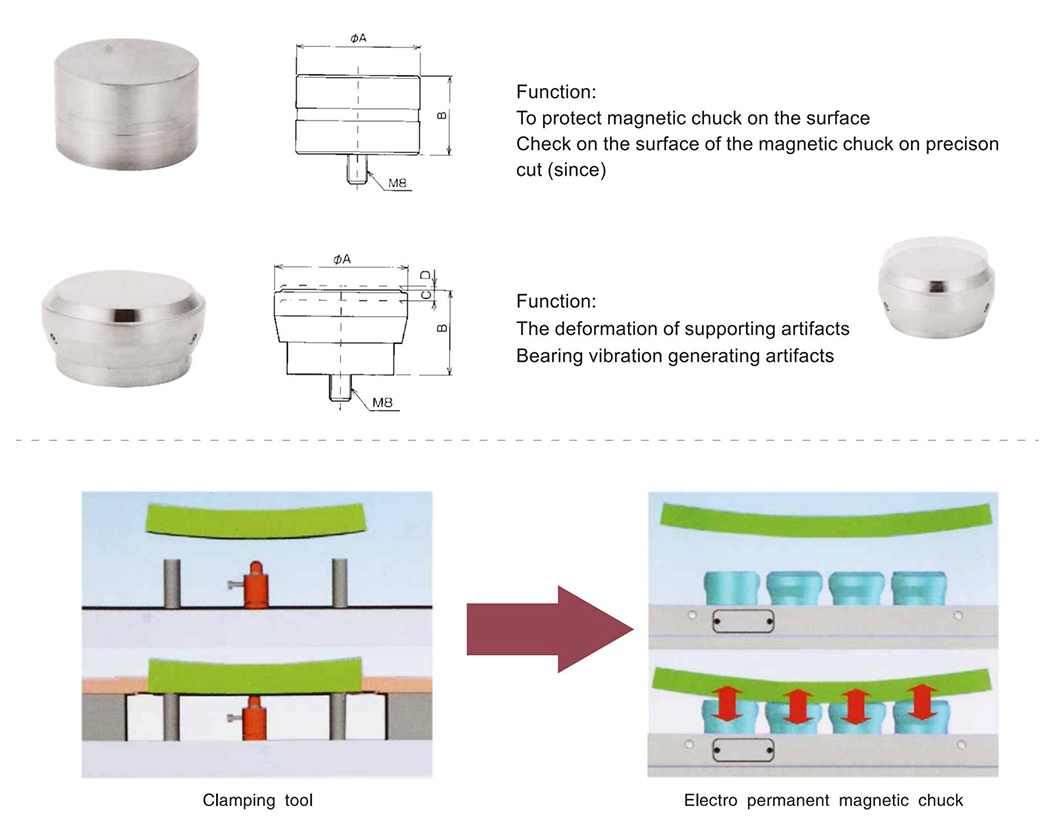

Magnetic blocks for extensions.

Square or round magnetic blocks can extend the magnetic force from the chuck, which can protect magnetic chuck from wearing out and make its service life longer. Besides, it can provide you more different clamping solutions for all kinds of maching.

Compared with traditional clamping, there are a lot of advantages for magnetic chuck,
Read more

There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages..
